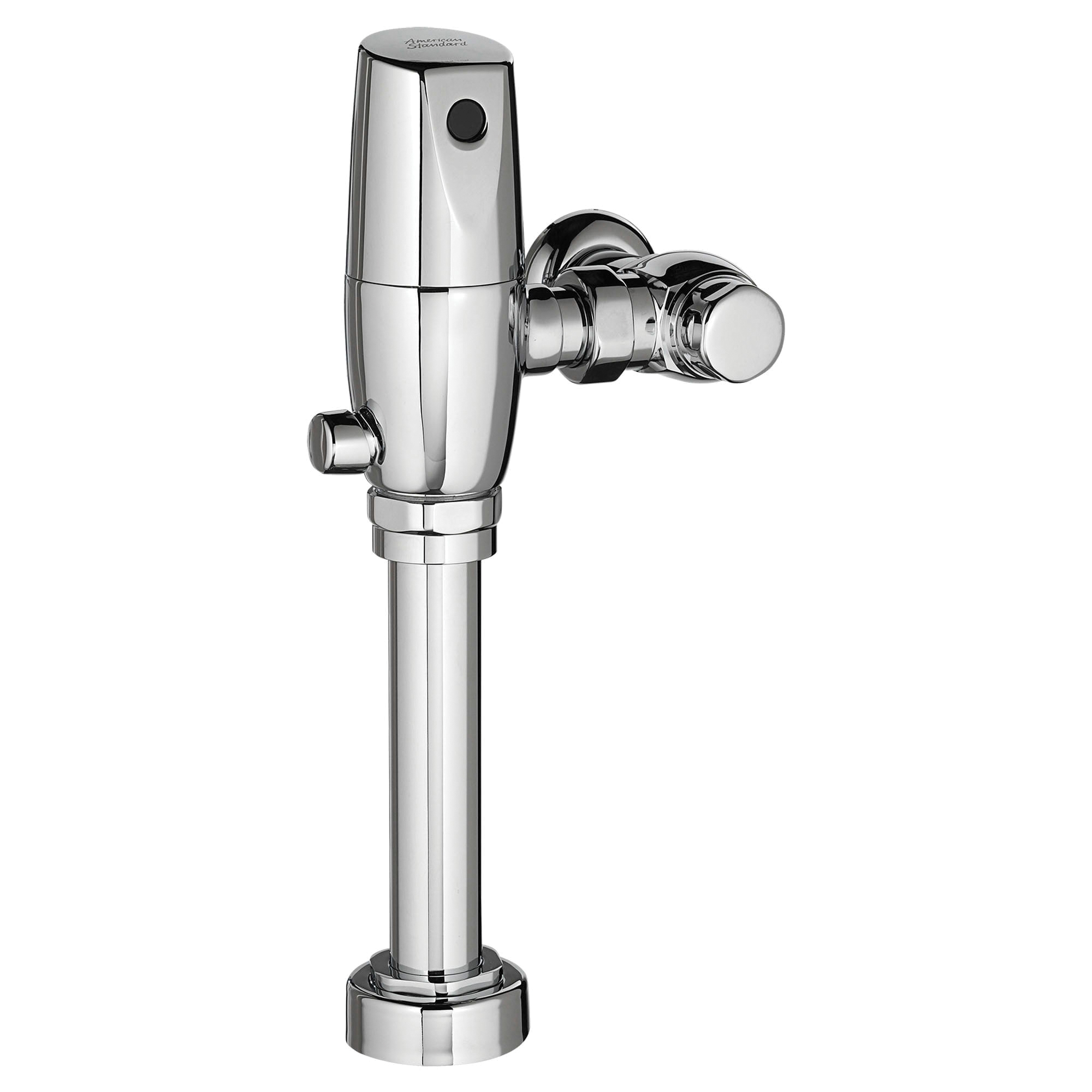

A/S 6065.761.002 SELECTRONIC DUAL FLUSH EXP FLUSH VALVE 1.6 / 1.1 GPF

The Exposed Selectronic® toilet flush valve is now capable of meeting ADA clearance requirements when installed under a grab bar that is installed at 36 IN height from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs. Features CR-P2 lithium battery installed battery life 4 YR assuming 4000 flushes per month. Touch free operation helps keep the restroom clean and hygienic. Self-cleaning piston significantly reduces clogging and prevents valve run on integral wiper spring cleans the refill orifice with every flush for extraordinary reliability. No routine maintenance no diaphragms to replace no filters to clean Selectronic®. Proximity system with programmable sensor allows for easy adjustment and customization State-of-the-Art. Electronics prevent ghost flushing fully mechanical, manual override button can flush the valve without power fail. Safe valve automatically closes upon loss of power or water pressure and does not need to be reset, adjustable sanitary flush cleans the fixture and maintains the trap seal.

• 8 YR CR-P2 lithium battery installed in valve
• Touchless operation limits the spread of germs
• Exclusive Dynaclean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Valve automatically closes upon loss of power or water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2 IN rough-in

• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/AmericanStandard_6065-121-002_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/AmericanStandard_6065-721-002_Specification_Sheet.pdf
