AMTROL T-5 2 GAL THERMAL EXPANSION TANK 1 YR WARRANTY

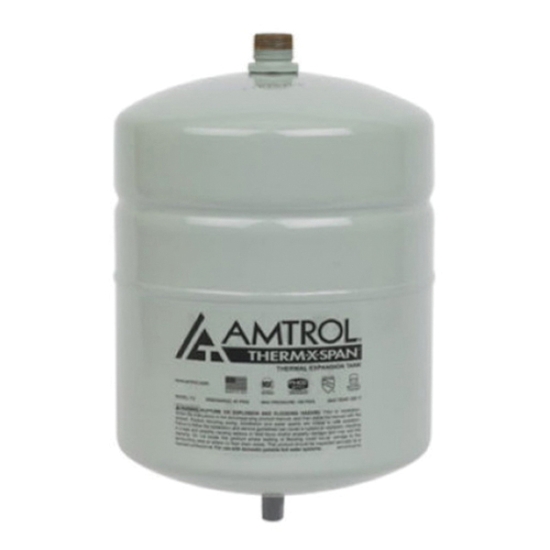

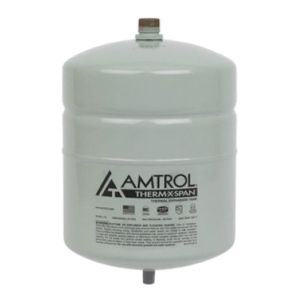

Amtrol T-5 Steel In-Line Thermal Expansion Tank, 2 GAL, 3/4 IN Threaded
- Manufacturer: Amtrol Inc
- Brand: Amtrol
- MGPN: AMT390517
- MPN: T-5
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Designed for use in closed, potable hot water systems, Therm-X-Span accepts expanded water as system temperature rises. This hot water is returned to the system when demand occurs. A thermal expansion tank, like Therm-X-Span, is essential in a closed system to protect your water heater.
| Item Name | : | Thermal Expansion Tank |
| Type | : | In-Line |
| Series/Model | : | Model T-5 |
| Capacity | : | 2 GAL |
| Material | : | Steel |
| Maximum Pressure | : | 150 PSI |
| Connection Size | : | 3/4 IN Threaded |
| Height | : | 12-5/8 IN |
| Temperature Rating | : | 200 DEG F |
| Industry Standards | : | IAPMO® Certified, NSF® Listed - Standard 61, UPC Listed |
| Other Physical Dimension | : | 8 IN Diameter |
| Additional Specifications | : | Factory Pre-Charge: 40 PSIG |
- Stainless steel connection
- Deep drawn steel design
- Heavy-duty diaphragm
- Polypropylene liner
- Welded air stem to help eliminate leaks
