2-1/2 LEAD FREE BRZ 3PC FP BALL VALVE

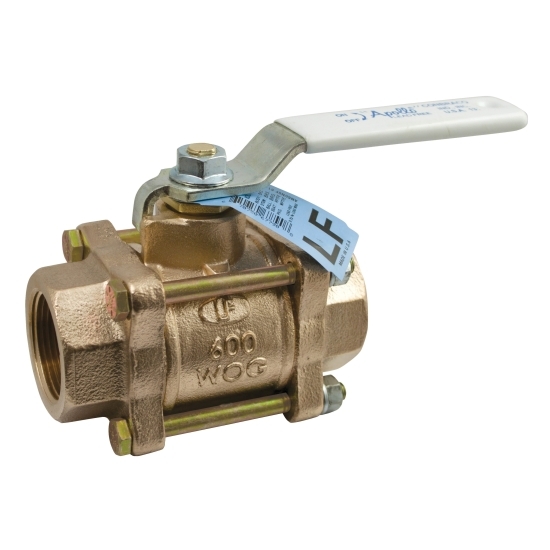

Apollo Valves 82LF-100 Lead Free Bronze Lever Handle 3-Piece Full-Port In-Line Standard Ball Valve, 2-1/2 IN, FNPT
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 25082LF10901BV
- MPN: 82LF-109-01
- UPC: 670750676710
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
3-Piece Full-Port In-Line Standard Ball Valve, Series/Model: Series 82LF-100, Nominal Size: 2-1/2 IN, Connection Type: FNPT, Pressure Rating: 600 PSI (CWP), 150 PSI (SWP), Temperature Rating: -50 To 400 DEG F, 2-1/2 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Steel With Vinyl Grip, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Specification: Body: UNS C89836, Ball And Stem: UNS C27451, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, CSA B51 CRN: 0C10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free, 7-1/4 IN Width, Lead Free: Yes, Other Physical Dimension: 5.14 IN Inlet Center To Top Of Handle, 9-3/4 IN Handle Length
| Item Name | : | In-Line Standard Ball Valve |
| Type | : | 3-Piece, Full-Port |
| Series/Model | : | Series 82LF-100 |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 600 PSI (CWP), 150 PSI (SWP) |
| Temperature Rating | : | -50 To 400 DEG F |
| Opening Size | : | 2-1/2 IN |
| Body Material | : | Bronze |
| Operator Type | : | Lever Handle |
| Handle Material | : | Steel With Vinyl Grip |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Packing Material | : | MPTFE Stem |
| Seat Material | : | RPTFE |
| Seal Material | : | PTFE |
| Material Specification | : | Body: UNS C89836, Ball And Stem: UNS C27451 |
| Finish/Color | : | Zinc Plated Handle, Chrome Plated Ball |
| Industry Standards | : | MSS-SP-110 Compliant, CSA B51 CRN: 0C10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free |
| Width | : | 7-1/4 IN |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 5.14 IN Inlet Center To Top Of Handle, 9-3/4 IN Handle Length |
| Weight | : | 26.600 LB |
The Apollo® 82LF series offers the same rugged features as the standard 82 Series with the added advantage of lead-free materials. Designed to provide on service life and ease of in-line maintenance. SAE grade body bolts are standard. These valves are cast and machined in Apollo®'s South Carolin manufacturing plants.
- ASTM B584 bronze body and ends
- SAE grade 8 body bolts
- Adjustable packing nut
- Full-port flow
- 600 CWP, 150 SWP
- 82-14X with SS ball and stem option
- Easily identifiable white handle grip and blue "lead-free" hang tag
- 100% factory tested
- Made in the USA
