Gauge, Ashcroft #63-1008S 02L 0-1000 PSI

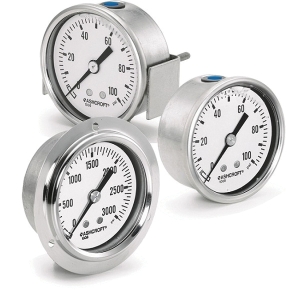

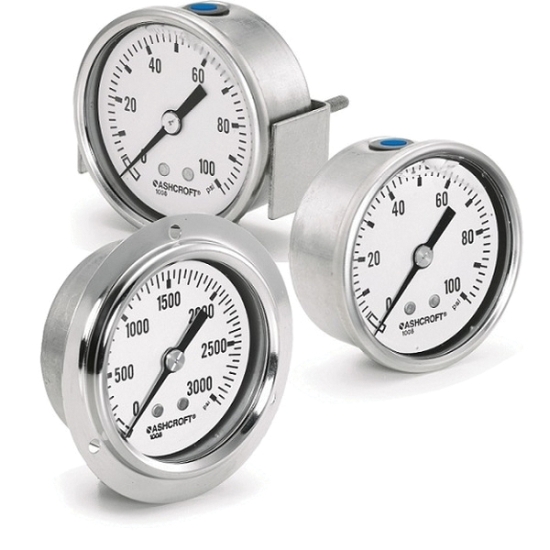

The Ashcroft® 40/50/63/100 MM 1008S pressure gauges are an excellent solution for pressure measurement in harsh environments. These gauges offer exceptional quality and reliability in an all stainless steel pressure gauge. The sealed case protects from ambient conditions and includes features enhancing product performance and safety. The 40/50 MM gauges are ideal for limited space installations.

Ashcroft® 1008S Pressure Gauge, 2-1/2 IN Dial, 0 - 1000 PSI Measuring, Units Of Measure: PSI, 1/4 MNPT Lower Connection, Plus/Minus 1.6% Of Span, Plus/Minus 2% Of Span, Plus/Minus 3-2-3% Of Span (ASME, B40.100 Grade B) Accuracy, Stainless Steel Case, Movement Material: 304 Stainless Steel, 316 Stainless Steel Tube, Filled With: Dry, 2.73 IN Width, 1 IN Depth, Industry Standards: CE Marked, CRN, NSF 61 Certified, RoHS Compliant, UKCA, Additional Specifications: Process Connection Material: 316L Stainless Steel, Window Material: Polycarbonate

• PowerFlex™ movement providing superior shock, vibration and pulsation performance available on most sizes
• All welded stainless steel construction
• True Zero™ reduces reading errors by using a "zero box" instead of conventional dial pins (posts), this ensures product safety, integrity and system control
• Extensive connection sizes/locations to address a wide range of installations

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/GA631008S02L01000_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/GA631008S02L01000_Spec.pdf
