501-LFHDF CP 4 CC LAV FAUCET

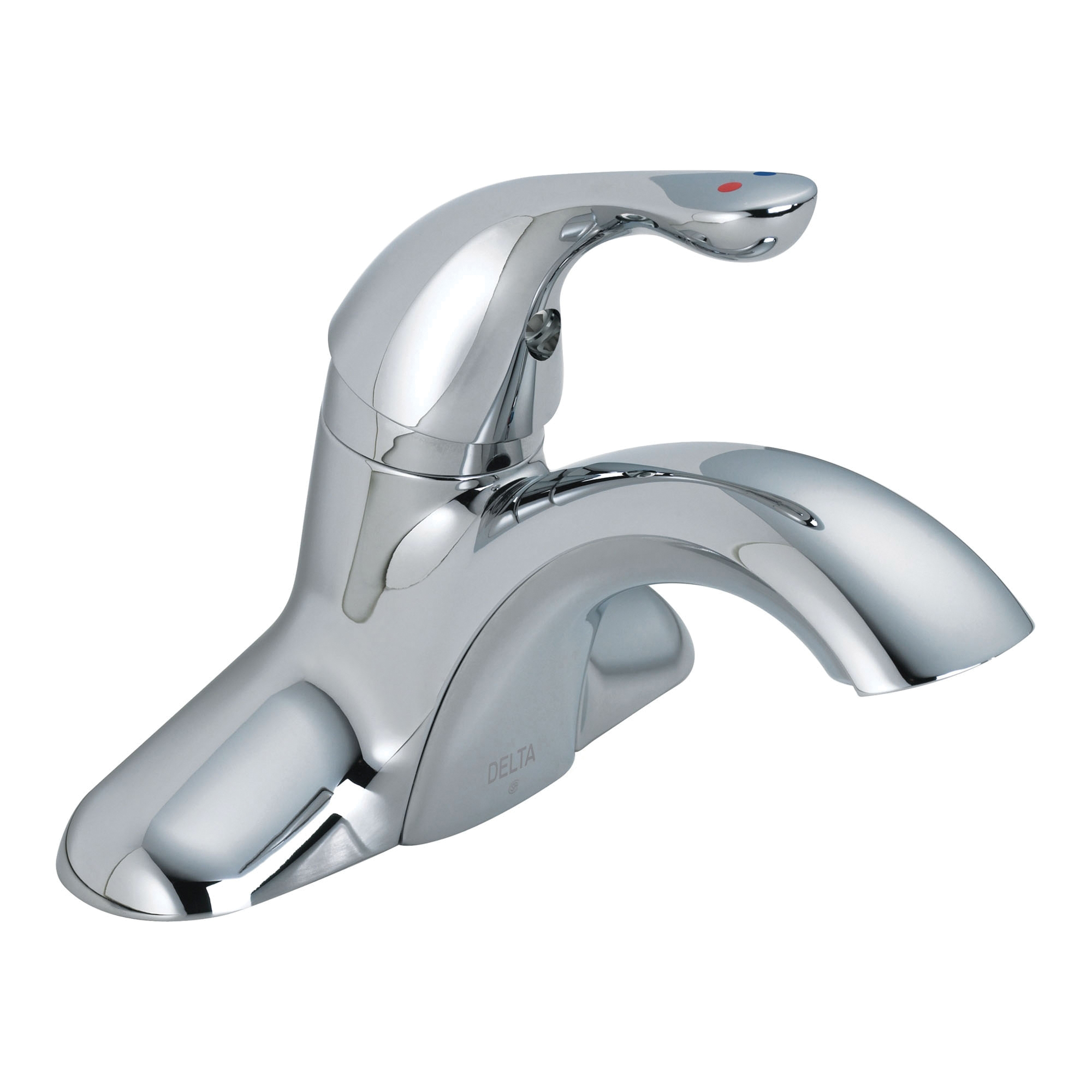

Delta 501LF-HDF Chrome Plated Metal Less Pop-Up Manual Centerset Lavatory Faucet, 3/8 IN
- Manufacturer: Delta Faucet
- Brand: Delta
- MGPN: 501LFHDF
- MPN: 501LF-HDF
- UPC: 034449643917
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Delta is committed to supporting water conservation around the globe and has been recognized as WaterSense® manufacturer partner of the year IN 2011, 2013, and 2014.
Less Pop-Up Centerset Lavatory Faucet, Manual Operation, 1 Handles, Handle Type: Lever, 3/8 IN Inlet Size, Flow Rate: 1.5 GPM At 60 PSI, 5.7 L/MIN At 414 KPA, 3 Holes, 4 IN Faucet Centers, Material: Metal, Finish/Color: Chrome Plated, Mounting: Deck, 5 IN Spout Reach, 4-7/8 IN Spout Total Height, 1-11/16 IN Spout Height Deck To Aerator, Valve Type: DIAMOND Seal®, Flow Outlet Type: Aerator, ADA Compliant: Yes, Industry Standards: ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ICC/ANSI A117.1, EPA WaterSense, Other Physical Dimension: 6-9/16 IN Height X 6-11/16 IN Depth X 6-1/2 IN Width
| Item Name | : | Centerset Lavatory Faucet |
| Type | : | Less Pop-Up |
| Operation | : | Manual |
| Number Of Handles | : | 1 |
| Handle Type | : | Lever |
| Inlet Size | : | 3/8 IN |
| Flow Rate | : | 1.5 GPM At 60 PSI, 5.7 L/MIN At 414 KPA |
| Number Of Holes | : | 3 |
| Faucet Centers | : | 4 IN |
| Material | : | Metal |
| Finish/Color | : | Chrome Plated |
| Mounting | : | Deck |
| Spout Reach | : | 5 IN |
| Spout Total Height | : | 4-7/8 IN |
| Spout Height Deck To Aerator | : | 1-11/16 IN |
| Valve Type | : | DIAMOND Seal® |
| Flow Outlet Type | : | Aerator |
| ADA Compliant | : | Yes |
| Industry Standards | : | ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ICC/ANSI A117.1, EPA WaterSense |
| Other Physical Dimension | : | 6-9/16 IN Height X 6-11/16 IN Depth X 6-1/2 IN Width |
- WaterSense® certification promotes water conservation
- Drain assembly sold separately
- 3-hole 4 IN installation
- Standard spout
- Less pop up
- No lift rod hole
- 1/4 IN threaded mounting studs
- 2 IN max deck thickness
- 3/8 IN OD straight, 4 IN spaced copper supply tubes with 1/2 IN IPS fittings
- Diamond® valve
Instruction/Installation Manual
