CI HIGH CAPACITY AIR VENT

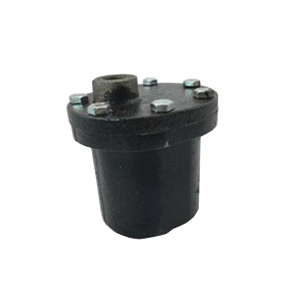

Elbi CIA-075 Cast Iron High Capacity Air Vent, 3/4 X 1/2 IN, FNPT
- Manufacturer: Elbi Of America Inc
- Brand: Elbi
- MGPN: CIA075
- MPN: CIA-075
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
High Capacity Air Vent, Nominal Size: 3/4 X 1/2 IN, Connection Type: FNPT, Pressure Rating: 150 PSIG, Material: Cast Iron Body, 304 Stainless Steel Seat, Material Standard: Body: ASTM A126 Class B, Seat: ASTM A240, Temperature Rating: -20 To 250 DEG F, 4-3/4 IN Width, 5-1/4 IN Height, Additional Specifications: Orifice Size: 0.063 IN NPT
| Item Name | : | Air Vent |
| Type | : | High Capacity |
| Nominal Size | : | 3/4 X 1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 150 PSIG |
| Material | : | Cast Iron Body, 304 Stainless Steel Seat |
| Material Standard | : | Body: ASTM A126 Class B, Seat: ASTM A240 |
| Temperature Rating | : | -20 To 250 DEG F |
| Width | : | 4-3/4 IN |
| Height | : | 5-1/4 IN |
| Additional Specifications | : | Orifice Size: 0.063 IN NPT |
| Weight | : | 5.500 LB |
- Automatic float operated valve designed to release accumulated air from a piping system while the system is IN operation and under pressure
- Cast iron (A126-B) body with corrosion-resistant stainless steel float and seat assembly
- Valve cover is fitted with a 1/2 IN NPT plugged connection that can be fitted with a manual valve to decrease start-up time during system filling
