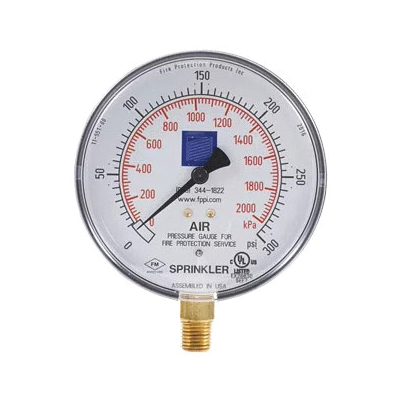

AIR/WATER GAUGE 0-300 UL/FM

FPPI pressure gauges feature an impact and corrosion-resistant case made from ABS (plastic). Features phosphor bronze bourdon tube movement with white enameled brass dial face with large numbers for easy reading. Dual scale to 300 PSI/2000 KPA.

Air/Water Pressure Gauge, 4 IN Dial, Measuring Range: 0 - 300 PSI/0 - 2000 KPA, Units Of Measure: PSI, KPA, Connection: 1/4 IN NPT Lower Mount, Accuracy: Plus/Minus 3-2/3% (ASME B40.100 Grade B), Dial Face: Aluminum With Stop Pin, White Background With Black And Red Lettering, Black Polycarbonate Case, Snap-In Clear Polycarbonate Lens, Pointer Material: Black Aluminum, Copper Alloy Movement, Tube Material: Copper Alloy C-Type, Temperature Rating: Media: 140 DEG F, Industry Standards: C/US UL Listed, FM Approved, Additional Specifications: Ambient Temperature: -40 To 140 DEG F

• Impact and corrosion resistant
• Features phosphor bronze bourdon tube movement with white enameled brass dial face with large numbers for easy reading
• Reliable and economical

Application: For fire sprinkler systems and all media that will not obstruct the pressure system or attack copper alloy parts

• Catalog https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/FPPI_01-220_Catalog.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/FPPI_11-550_Specification_Sheet.pdf
