1100H5 24 V LOW WATER CUT-OFF

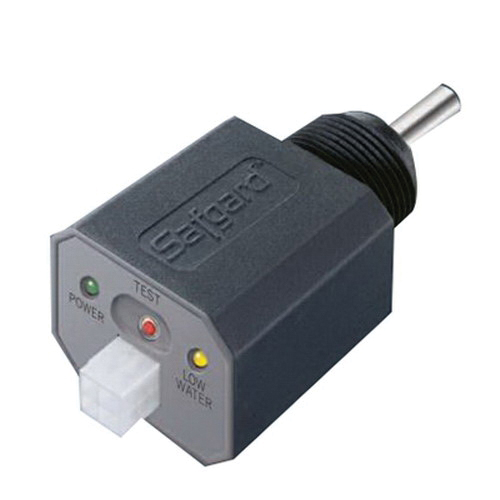

Hydrolevel Safgard™ 1100H5 PPE Probe Style Low Water Cut-Off With Wire Harness, 3/4 IN NPT, 24 VAC
- Manufacturer: Hydrolevel Company
- Brand: Hydrolevel
- MGPN: 1100H5
- MPN: 45-1105
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Safgard™ Probe Style Low Water Cut-Off With Wire Harness, Series/Model: Model 1100H5, Size: 3/4 IN NPT, Power Rating: 1 VA, Voltage Rating: 24 VAC, Amperage Rating: 5 A, Contact Configuration: SPST, Pressure Rating: 160 PSI, Material: PPE Housing, Temperature Rating: 250 DEG F, Length: 3-3/4 IN, 1-23/33 IN Width, 1-3/8 IN Height, Industry Standards: UL 353 Listed, ICC Compliant, NEMA 1 Classification, Additional Specifications: Switching Capacity: 50 VA
| Additional Specifications | : | Switching Capacity: 50 VA |
| Amperage Rating | : | 5 A |
| Contact Configuration | : | SPST |
| Height | : | 1-3/8 IN |
| Industry Standards | : | UL 353 Listed, ICC Compliant, NEMA 1 Classification |
| Item Name | : | Low Water Cut-Off With Wire Harness |
| Length | : | 3-3/4 IN |
| Material | : | PPE Housing |
| Power Rating | : | 1 VA |
| Pressure Rating | : | 160 PSI |
| Series/Model | : | Model 1100H5 |
| Size | : | 3/4 IN NPT |
| Sub Brand | : | Safgard™ |
| Temperature Rating | : | 250 DEG F |
| Type | : | Probe Style |
| Voltage Rating | : | 24 VAC |
| Width | : | 1-23/33 IN |
- Compact design
- Automatic reset
- Burner circuit test button
- Power and low water LED indicators
Brochure
