1/4 x 1/8 BI-LOK SS MALE ELL

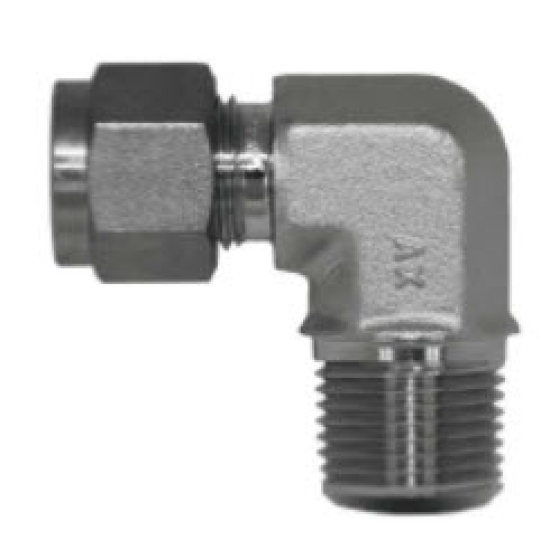

IHARA SCIENCE CORPORATION BI-Lok® DLN-4-2-SS 90 DEG Elbow, 1/4 X 1/8 IN, MNPT, 316/316L Stainless Steel, Silver
- Manufacturer: IHARA SCIENCE CORPORATION
- Brand: IHARA SCIENCE CORPORATION
- MGPN: BILOK ELL SDLN 4-2
- MPN: DLN-4-2-SS
- Min. Order Qty: 1
- Qty. Interval: 1
- Availability: 0
-
Price: $16.94
The 1/4 X 1/8 IN 316/316L Stainless Steel 90 DEG Elbow changes the direction of tubing runs using a double-ferrule compression seal. Available with MNPT connections, it is built to consistent industry dimensional standards for dependable performance in process piping systems. Buy 90 deg elbow online at Macomb Group for same-day quoting and fast delivery to keep your project on schedule.
IHARA SCIENCE CORPORATION BI-Lok® DLN 90 DEG Elbow, 1/4 X 1/8 IN Nominal, MNPT Connection, 316/316L Stainless Steel, Material Standard: ASTM A182, Finish/Color: Silver, 27.5 MM Length, 4500 PSI Maximum Pressure, -70 - 300 DEG F, Industry Standards: ISO Certified, Other Physical Dimension: 1/2 IN Hex Size, Domestic/Import: Domestic
| Sub Brand | : | BI-Lok® |
| Item Name | : | 90 DEG Elbow |
| Series/Model | : | DLN |
| Nominal Size | : | 1/4 X 1/8 IN |
| Connection Type | : | MNPT |
| Material | : | 316/316L Stainless Steel |
| Material Standard | : | ASTM A182 |
| Finish / Color | : | Silver |
| Length | : | 27.5 MM |
| Maximum Pressure | : | 4500 PSI |
| Temperature Rating | : | -70 - 300 DEG F |
| Industry Standards | : | ISO Certified |
| Other Physical Dimension | : | 1/2 IN Hex Size |
| Domestic/Import | : | Domestic |
