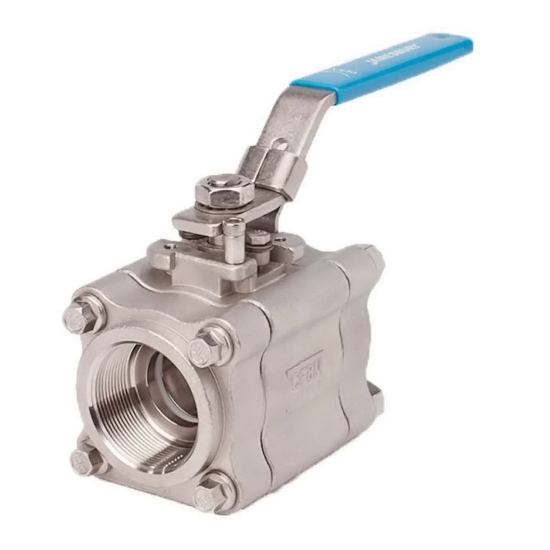

2 JAMESBURY SW 4000 STD

The Jamesbury series 4000 ball valves offer the three most desirable attributes of high-quality valves, exceptional performance, great versatility and economical cost. This valve line includes both standard port valves (to 2-1/2 IN(DN 65) and full port valves (to 2 IN (DN 50)) with three available end connections-threaded end, socket weld and butt weld.

Jamesbury™ Ball Valve, Type: 3-Piece, Standard Port, Ball Valve, Series/Model: Series 4000, 2 IN Nominal, Connection Type: Socket Weld, 2250 PSI, Pressure Class: Class 800, 500 DEG F, 1-1/2 IN Opening, Stainless Steel Body, Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Fluoropolymer Seat, Graphite/TFM Seal, Material Standard: ASTM A351 Grade CF8M, ASTM A193 Grade B8M, ASTM 194 Grade 8, Industry Standards: API 598, API 607, ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.34, ASME B31.1, ASME B31.3, ASME B31.4, MSS SP-25, MSS SP-55, MSS SP-72, 3.66 IN Width, Other Physical Dimension: 5.11 IN Inlet To Outlet Length, 4.46 IN Top To Inlet Center

• Robust engineering design
• Self-relieving seat technology
• Patented stem seal technology
• Very long service life
• Bi-directional in hazardous media service
• Low fugitive emissions
• Bubble-tight shut-off
• Automatable

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/J4A2236TTB12_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/J4A2236TTB12_Spec.pdf
