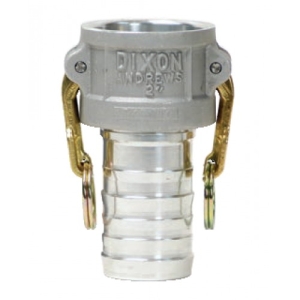

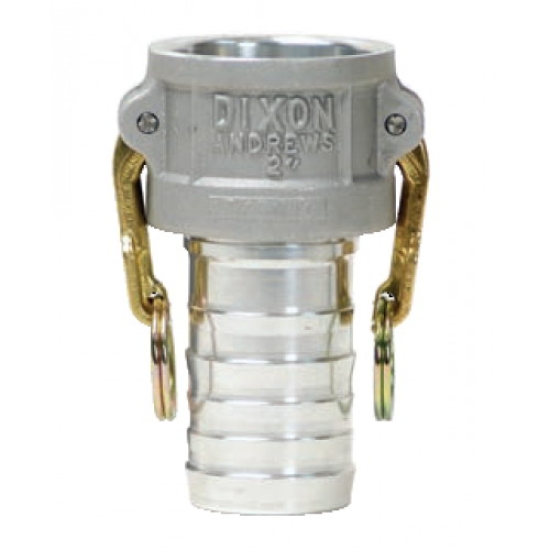

1/2 TYPE C ALUM COUPLER FEMALE X HOSE
50-C Aluminum Type C Coupler, 1/2 IN, Female X Hose
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 050CAL
- MPN: 50-C-AL
- UOM: EA
- Min. Order Qty: 1
- Qty. Interval: 1
- Availability: 0
-
Price: $19.68
Type C Coupler, Nominal Size: 1/2 IN, Connection Type: Female X Hose, Material: Aluminum, Material Standard: ASTM A356-T6, Maximum Pressure: 150 PSI, Outside Diameter: 19/32 IN Hose Shank X 1-9/32 IN Coupler, Length: 2-21/32 IN, Other Physical Dimension: 1-7/32 IN Coupler Length, 2 IN Open Cam Arm
| Item Name | : | Coupler |
| Type | : | Type C |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Female X Hose |
| Material | : | Aluminum |
| Material Standard | : | ASTM A356-T6 |
| Maximum Pressure | : | 150 PSI |
| Outside Diameter | : | 19/32 IN Hose Shank X 1-9/32 IN Coupler |
| Length | : | 2-21/32 IN |
| Other Physical Dimension | : | 1-7/32 IN Coupler Length, 2 IN Open Cam Arm |
| Weight | : | 0.050 LB |
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place - ensures proper placement
- Long shank design allows proper banding, thus eliminating the major cause of hose damage
- Buna-N gasket seal, durable stainless steel cam arm pins construction and supplied with safety clips
- Pressure rating recommendations are based on the use of mating dixon fittings at ambient temperature 70 DEG F with a standard seal installed
- Designed for use with liquids
Application: For use with king crimp sleeves and ferrules
