1-1/4 X 1 B3281CT PIPE GUIDE

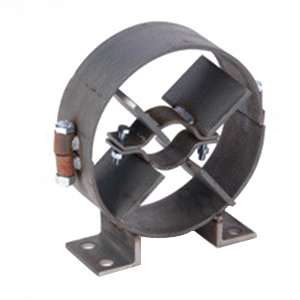

Primer Carbon Steel Copper TuPipe Alignment Guide, 1-1/4 X 1 IN, 5-7/8 IN L
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 125B3281CT
- MPN: B3281CT-1-1/4BP
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Copper Tubing Pipe Alignment Guide, Series/Model: Series B3281CT, 1-1/4 IN Diameter, Length: 5-7/8 IN, Material: Carbon Steel, Industry Standards: MSS ANSI/MSS-SP-69 And SP-58, Federal Specification WW-H-171E And A-A-1192A, Finish/Color: Black Primer, Other Physical Dimension: 6-1/8 IN Width
| IMPORTANT NOTICE | : | For the latest specifications and to make sure this item conforms to your needs, call 888-756-4110 or email [email protected] |
| Item Name | : | Pipe Alignment Guide |
| Type | : | Copper Tubing |
| Series/Model | : | Series B3281CT |
| Diameter | : | 1-1/4 IN |
| Length | : | 5-7/8 IN |
| Material | : | Carbon Steel |
| Industry Standards | : | MSS ANSI/MSS-SP-69 And SP-58, Federal Specification WW-H-171E And A-A-1192A |
| Finish/Color | : | Black Primer |
| Other Physical Dimension | : | 6-1/8 IN Width |
| Additional Specifications | : | Insulation Thickness: 1 IN, Body Size: 001, Standard Allowable Movement(SAM): 4 IN, Mounting Hole Diameter: (4) 5/8 IN, Mounting Hole Distance: 1-3/4 IN, Maximum Temperature: 750 DEG F |
| Weight | : | 7.000 LB |
- Pipe lines should be supported with hangers or rollers so that when properly installed, the guides will not be supporting any pipe loads
- Compatible for use with 1-1/2 - 24 IN L pipe
Application: Designed for use in directing thermal expansion of insulated or non-insulated pipe in the direction permitted by expansion joints or loops
