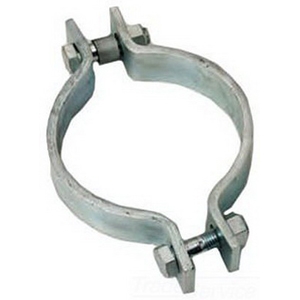

1-1/2 STD PIPE CLAMP
Plain Low Carbon Steel Standard Pipe Clamp, 1-1/2 IN, 800 LB
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 150B3140
- MPN: B3140-1-1/2PLN
- UPC: 78101107424
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Standard Pipe Clamp, Series/Model: Series B3140, Nominal Size: 1-1/2 IN, Bolt Size: 5/16-18 UNC, 620 LB At 750 DEG F, Material: Low Carbon Steel, Industry Standards: MSS ANSI/SP-69 And SP-58 Type 4, Federal Specification A-A-1192A Type 4, C/US UL Listed, FM Approved, California OSHPD Approved, Finish/Color: Plain, Other Physical Dimension: 1-3/4 IN Center Of Pipe To Bolt, 2-1/4 IN Center Of Pipe To Top
| IMPORTANT NOTICE | : | For the latest specifications and to make sure this item conforms to your needs, call 888-756-4110 or email [email protected] |
| Item Name | : | Pipe Clamp |
| Type | : | Standard |
| Series/Model | : | Series B3140 |
| Nominal Size | : | 1-1/2 IN |
| Bolt Size | : | 5/16-18 UNC |
| Maximum Load | : | 800 LB At 650 DEG F, 620 LB At 750 DEG F |
| Material | : | Low Carbon Steel |
| Industry Standards | : | MSS ANSI/SP-69 And SP-58 Type 4, Federal Specification A-A-1192A Type 4, C/US UL Listed, FM Approved, California OSHPD Approved |
| Finish/Color | : | Plain |
| Other Physical Dimension | : | 1-3/4 IN Center Of Pipe To Bolt, 2-1/4 IN Center Of Pipe To Top |
| Additional Specifications | : | Maximum Temperature: 750 DEG F, PHD 520 |
| Weight | : | 0.450 LB |
Application: For suspension of non-insulated pipe lines
contact_spec.pdf
-
-
