TRIPLE STEEL STUD SHOE SUPPORT BRACKET

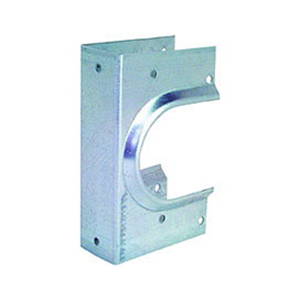

Sioux Chief 533 style 16 GA Steel Triple Stud Shoe Support Bracket, 2-1/2 IN
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 5333
- MPN: 533-3
- UPC: 739236201966
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Triple Stud Shoe Support Bracket, Series/Model: Series 533, Pipe Size: 2-1/2 IN, Length: 3 IN, Material: 16 GA Steel, Load Capacity: 945 LB, Industry Standards: Meets IRC 602.6, Other Physical Dimension: 3 IN Width X 5-1/2 IN Height, Additional Specifications: Volume: 4.7 CU-IN
| Item Name | : | Stud Shoe Support Bracket |
| Type | : | Triple |
| Series/Model | : | Series 533 |
| Pipe Size | : | 2-1/2 IN |
| Length | : | 3 IN |
| Material | : | 16 GA Steel |
| Load Capacity | : | 945 LB |
| Industry Standards | : | Meets IRC 602.6 |
| Other Physical Dimension | : | 3 IN Width X 5-1/2 IN Height |
| Additional Specifications | : | Volume: 4.7 CU-IN |
- Formed rib provides added strength
- Installs over pipe up to 2-3/8 IN OD
- Install with a 1-1/2 IN minimum length screw or nail in each of the brackets provided holes
- Stud Shoe stud support bracket, to be used to reinforce studs or joists that have been bored or notched to allow for piping
- Pipe opening (dimension D) is 2-1/2 IN for use with any piping that is 2 IN SCH 40 or smaller
