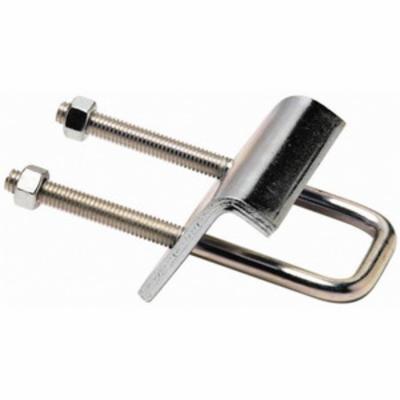

B441-22A LONG BEAM CLAMP
Electro-Zinc Plated Low Carbon Steel Long Clamp With U-3/4 IN, 1200 LB
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: B441-22A
- MPN: B441-22A ZN
- UPC: 78101155273
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Long Beam Clamp With U-Bolt, 1200 LB Maximum Load, 3/4 IN Jaw Opening, Material: Low Carbon Steel, Material Standard: Finish: ASTM B633 SC3 Type III Or ASTM A653, Finish/Color: Electro-Zinc Plated, Torque Rating: 150 IN-LB, 3 IN Length, Other Physical Dimension: 1/4 IN Thickness, 5 IN Maximum Jaw Capacity, PHD 7075
| IMPORTANT NOTICE | : | For the latest specifications and to make sure this item conforms to your needs, call 888-756-4110 or email [email protected] |
| Item Name | : | Beam Clamp With U-Bolt |
| Type | : | Long |
| Maximum Load | : | 1200 LB |
| Jaw Opening | : | 3/4 IN |
| Material | : | Low Carbon Steel |
| Material Standard | : | Finish: ASTM B633 SC3 Type III Or ASTM A653 |
| Finish/Color | : | Electro-Zinc Plated |
| Torque Rating | : | 150 IN-LB |
| Length | : | 3 IN |
| Other Physical Dimension | : | 1/4 IN Thickness, 5 IN Maximum Jaw Capacity |
| Additional Specifications | : | PHD 7075 |
- Factor of safety 5
Application: For use with 1-5/8 - 3-1/4 IN high channel
