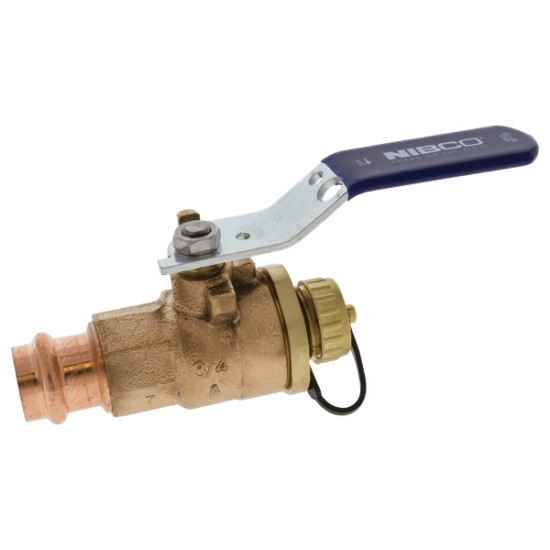

The NIBCO Press System® bronze ball valve includes a hose cap and chain attached to the valve. The valve features press-to-connect end connections and a new design that allows a leak to occur during testing if the press connection is not properly crimped. When properly crimped a unique "N" witness mark is clearly visible.

NIBCO Ball Valve, Type: 2-Piece, Full Port, Item Name: Ball Valve, Series/Model: Model PC-585-70-HC, 1/2 IN Nominal, Female Press X Threaded Hose End Connection, 250 PSI, 250 DEG F, Bronze Body, Lever Handle Operator, Zinc-Plated Steel Handle, Silicon Bronze Stem, Bronze Trim, PTFE Packing, Brass Gland, Reinforced PTFE Seat, EPDM Seal, Material Standard: Body: ASTM B584, Ball: ASTM B16, Stem: ASTM B371, Industry Standards: MSS SP-110, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Other Physical Dimension: 3.06 IN Inlet to Outlet Length, 1.88 IN Top to Inlet Center

• Two-piece body
• Bronze trim
• Blowout-proof stem
• Reinforced PTFE seat rings
• Press female and hose end connections
• Press leak detection feature

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NF843C6_Spec.pdf
