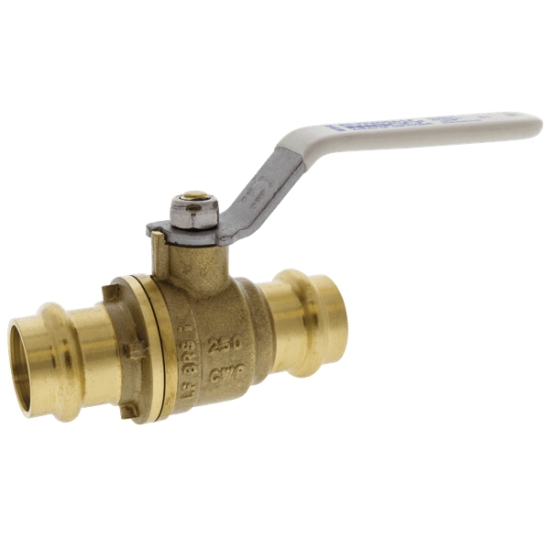

The NIBCO Press System® ball valve body is manufactured from lead-free brass alloy and is dezincification-resistant (DZR). The ball valve is designed with press-to-connect end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.

NIBCO Ball Valve, Type: 2-Piece, Full Port, Item Name: Ball Valve, Series/Model: Model PC-FP600A-LF, 1/2 IN Nominal, Press X Press Connection, 250 PSI, 250 DEG F, Brass Body, Standard Lever Handle Operator, Plated Steel Handle, Brass Stem, PTFE Packing, PTFE Seat, PTFE Seal, Industry Standards: MSS SP-110/145, IAPMO/ANSI Z1157, NSF/ANSI 61/372, Conforms to ASME B16.51, cUPC, Lead Free: Yes, Other Physical Dimension: 2.87 IN Inlet to Outlet Length, 2.09 IN Top to Inlet Center

• Copper to copper connections
• Blowout-proof stem
• Reinforced PTFE seat rings
• Press x press female end connections
• Press leak detection feature
• Dezincification-resistant

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NF998K6_Spec.pdf
