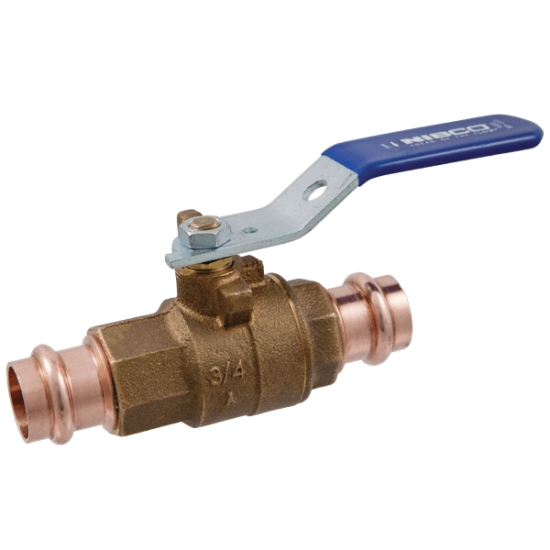

The NIBCO Press System® bronze ball valve body is manufactured from dezincification-resistant bronze, with a bronze blowout-proof stem. With the full port design and brass ball, the ball valve allows maximum flow and minimum pressure drop or turbulence with unobstructed bi-directional flow. The ball valve is designed with press-to-connect end connections with an inboard bead and EPDM O-ring for quick and easy joinery to the piping system. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. This ball valve features a new design that allows a leak to occur during testing if the press connection is not properly crimped.

NIBCO Ball Valve, Type: 2-Piece, Full Port, Item Name: Ball Valve, Series/Model: Model PC-585-70, 1-1/4 IN Nominal, Female Press X Female Press Connection, 250 PSI, 250 DEG F, Bronze Body, Lever Handle Operator, Zinc-Plated Steel Handle, Silicon Bronze Stem, Bronze Trim, PTFE Packing, Brass Gland, Reinforced PTFE Seat, EPDM Seal, Material Standard: Body: ASTM B584, Ball: ASTM B16, Stem: ASTM B371, Industry Standards: MSS SP-110, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Other Physical Dimension: 6.64 IN Inlet to Outlet Length, 3.05 IN Top to Inlet Center

• Two-piece body
• Silicon bronze stem
• Reinforced PTFE seat rings
• Press x press female end connections
• Press leak detection feature
• Dezincification-resistant

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NF84C06_Spec.pdf
