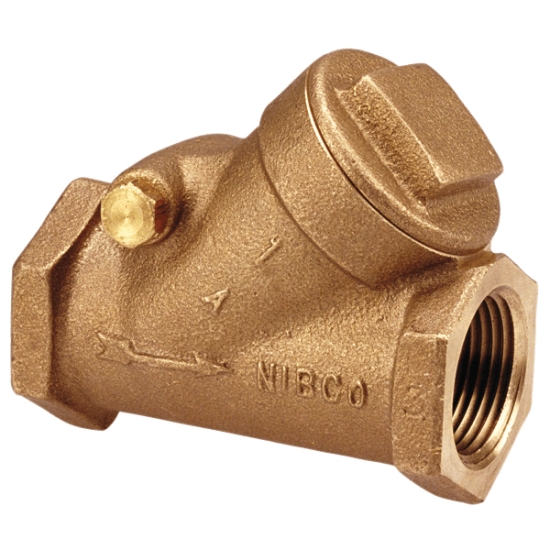

The NIBCO bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features threaded end connections for ease of installation. The check valve is recommended for commercial and industrial steam, water, oil and gas services.

NIBCO Check Valve, Item Name: Check Valve, Series/Model: Model T-413-Y, 1-1/2 IN Nominal, FNPT Connection, 125 PSI, Pressure Class: Class 125, 353 DEG F, Bronze Body, PTFE Seat, Material Standard: Body: ASTM B62, Industry Standards: MSS SP-139, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www., Lead Free: Yes, Other Physical Dimension: 4.5 IN Inlet to Outlet Length, 2.94 IN Top to Inlet Center, Domestic/Import: Domestic

• Y-pattern
• Renewable PTFE disc
• Regrindable seat
• Class 125 threaded end connections

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NL7400C_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NL7400C_Spec.pdf
