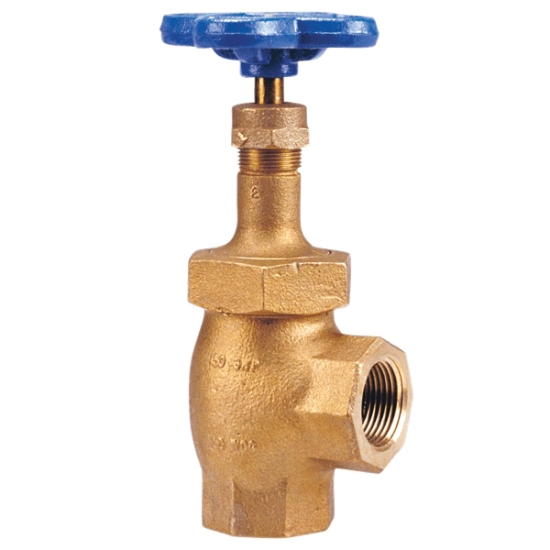

The NIBCO bronze angle valve features a union bonnet with integral seat and renewable seat disc. The seat disc is available in PTFE. The angle valve is used for throttling or regulating flow and the design eliminates a low area in the system where particles can settle and corrode or solidify. It is equipped with Class 150 female threaded ends for ease of installation.

NIBCO Angle Valve, Item Name: Angle Valve, Series/Model: Model T-335-Y, 2 IN Nominal, FNPT Connection, 150 PSI, Pressure Class: Class 150, 366 DEG F, Bronze Body, Standard Handwheel Operator, Malleable Iron Handle, Silicon Bronze Stem, Aramid Fiber With Graphite Packing, Bronze Gland, PTFE Seat, Material Standard: Body: ASTM B62, Stem: ASTM B371, Industry Standards: MSS SP-80, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Other Physical Dimension: 2.88 IN Top to Inlet Center

• Integral seat
• Renewable PTFE disc
• Class 150 threaded end connections
• Dezincification-resistant

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NL5400D_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NL5400D_Spec.pdf
