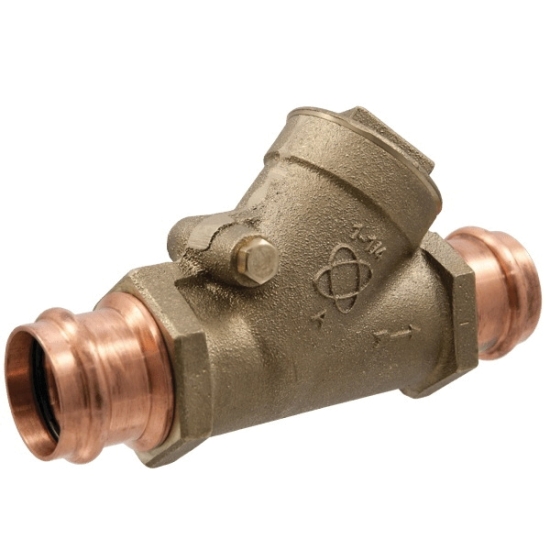

The NIBCO Press System® horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The check valve features press end connections for ease of installation. The check valve is constructed of high-quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.

NIBCO PC-413-Y-LF Y-Pattern Check Valve, 1/2 IN Nominal, Press X Press Connection, 200 PSI, 250 DEG F, Bronze Body, PTFE Seat, EPDM Seal, Material Standard: ASTM B584, Industry Standards: ALS, MSS-SP139, NSF/ANSI/CAN 61/372-8, 2.78 IN Width, 1.66 IN Height, Lead Free: Yes

• Valve pressure rating 200 PSI/13.8 BAR non-shock cold working pressure
• Renewable seat and disc
• Regrinding-type
• NIBCO double oval lead-free body marking
• Lead-free

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCOPRESSVLVCKBRPXPPC413YLF12_Spec.pdf
