1/2 NIBCO PF413-Y P x P FEM BRZ SWING CK

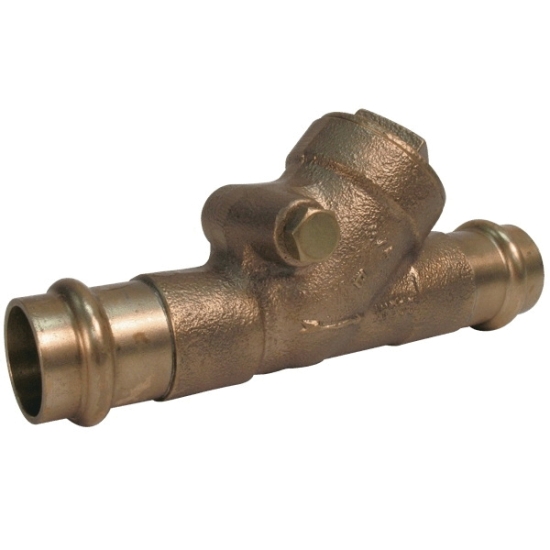

NIBCO PF-413-Y NF74006 Check Valve, 1/2 IN, Press X Press, Bronze
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: NIBCO PRESS VLV CK BR PXP PF413Y 1/2
- MPN: NF74006
- UPC: 039923256294
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO Press System® swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features press to connect end connections with an inboard bead and EPDM O-rings for quick and easy joinery to the piping system. Simply applying pressure from a press fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.
NIBCO PF-413-Y Y-Pattern Check Valve, 1/2 IN Nominal, Press X Press Connection, 200 PSI, 250 DEG F, Bronze Body, PTFE Seat, EPDM Seal, Material Standard: ASTM B584, Industry Standards: MSS-SP80, 2.72 IN Width, 1.54 IN Height
| Item Name | : | Check Valve |
| Type | : | Y-Pattern |
| Series/Model | : | PF-413-Y |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Press X Press |
| Pressure Rating | : | 200 PSI |
| Temperature Rating | : | 250 DEG F |
| Body Material | : | Bronze |
| Seat Material | : | PTFE |
| Seal Material | : | EPDM |
| Material Standard | : | ASTM B584 |
| Industry Standards | : | MSS-SP80 |
| Width | : | 2.72 IN |
| Height | : | 1.54 IN |
- Valve pressure rating 200 PSI/13.8 BAR non-shock cold working pressure
- Renewable seat and disc
- Regrinding-type
- Dezincification-resistant
