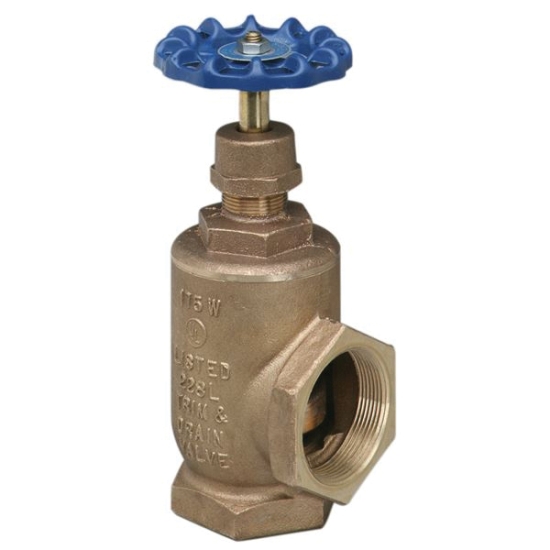

NIBCO T-301-W NL4BA0D Fire Protection Angle Valve, 2 IN, FIPT, Bronze, 175 PSI
2 NIBCO KT-301 W UL ANGLE
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV ANGLE BR UL T301W 2
- MPN: NL4BA0D
- UPC: 039923630810
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO bronze angle globe 175 PSI WWP valve features a screw-in bonnet with integral seat and renewable Buna-N seat disc. It is equipped with female threaded ends for ease of installation. It is usually used as the main drain in a fire protection system. Please refer to NIBCO technical data sheets, chemical-resistance guides and catalogs for engineering and installation information. Choose NIBCO globe valves for the most specified, versatile and economical valve option in fire protection applications. NIBCO globe valves are backed by the NIBCO 5 year 125% limited warranty.
NIBCO Fire Protection Angle Valve, Item Name: Fire Protection Angle Valve, Series/Model: T-301-W, 2 IN Nominal, FIPT Connection, 175 PSI, 7-1/4 IN Opening, Bronze Body, Standard Handwheel Operator, Silicon Bronze Stem, Non-Asbestos Aramid Fibers With Graphite Packing, Bronze Gland, Material Standard: ASTM B62/B584, C83600, Industry Standards: MSS SP-80, UL/ULC Listed, Additional Specifications: Turns/Operation: Multi-Turn, Bonnet Type: Screw-In, 6.717 LB Weight
| Item Name | : | Fire Protection Angle Valve |
| Series/Model | : | T-301-W |
| Nominal Size | : | 2 IN |
| Connection Type | : | FIPT |
| Pressure Rating | : | 175 PSI |
| Opening Size | : | 7-1/4 IN |
| Body Material | : | Bronze |
| Operator Type | : | Standard Handwheel |
| Stem Material | : | Silicon Bronze |
| Packing Material | : | Non-Asbestos Aramid Fibers With Graphite |
| Gland Material | : | Bronze |
| Material Standard | : | ASTM B62/B584, C83600 |
| Industry Standards | : | MSS SP-80, UL/ULC Listed |
| Additional Specifications | : | Turns/Operation: Multi-Turn, Bonnet Type: Screw-In |
| Weight | : | 6.717 LB |
