10 NIBCO WAFER DI/BR EPDM GEAR

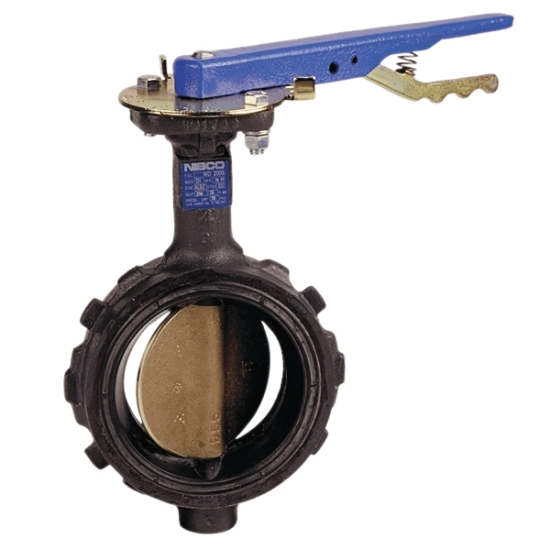

NIBCO WD-2000-5 NLH110M Butterfly Valve, 10 IN, 200 PSI, Ductile Iron Body
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV BF DI WD20005 10
- MPN: NLH110M
- UPC: 039923718921
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® wafer type butterfly valve provides bubble-tight shut-off at 200 PSI. The wafer valve is ideal for commercial and some light industrial process applications including HVAC and vacuum services, in addition to hot and cold potable water.
NIBCO NIBCO Butterfly Valve, Type: Quarter-Turn, Wafer Style, Butterfly Valve, Series/Model: WD-2000-5, 10 IN Nominal, 200 PSI, 225 DEG F Continuous, 250 DEG F Intermittent Service, Ductile Iron Body, Gear Operator, Stainless Steel Stem, Material Standard: Body Lug: ASTM A536, Body Wafer: ASTM A536, Collar Bushing: ASTM B16, Disc: ASTM B148, Lower Bushing: CDA 122, Stem: ASTM A582 Type 416, Upper Bushing: CDA 122, Material Specification: Disc: UNS Alloy 955, Industry Standards: MSS SP-67, MSS SP-25, US Coast Guard Category A, NSF/ANSI-61-8, NSF/ANSI/CAN-61 And 372, California Health And Safety Code Section 116875, Vermont Act 193, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Lead Free: Yes, Other Physical Dimension: 10-1/2 IN Center To Top, 8 IN Center To Bottom, NIBCO, 76.000 LB Weight
| Item Name | : | Butterfly Valve |
| Type | : | Quarter-Turn, Wafer Style |
| Series/Model | : | WD-2000-5 |
| Nominal Size | : | 10 IN |
| Pressure Rating | : | 200 PSI |
| Temperature Rating | : | 225 DEG F Continuous, 250 DEG F Intermittent Service |
| Body Material | : | Ductile Iron |
| Operator Type | : | Gear |
| Stem Material | : | Stainless Steel |
| Material Standard | : | Body Lug: ASTM A536, Body Wafer: ASTM A536, Collar Bushing: ASTM B16, Disc: ASTM B148, Lower Bushing: CDA 122, Stem: ASTM A582 Type 416, Upper Bushing: CDA 122 |
| Material Specification | : | Disc: UNS Alloy 955 |
| Industry Standards | : | MSS SP-67, MSS SP-25, US Coast Guard Category A, NSF/ANSI-61-8, NSF/ANSI/CAN-61 And 372, California Health And Safety Code Section 116875, Vermont Act 193, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 10-1/2 IN Center To Top, 8 IN Center To Bottom |
| Brand | : | NIBCO |
| Weight | : | 76.000 LB |
- Valve pressure rating 200 PSI
- 225 DEG F continuous and 250 DEG F intermittent service
- Wafer style
- EPDM molded-in seat liner
- Aluminum bronze disc
- Stainless steel stem with copper bushings
- Operating mechanism - bare stem, infinite position plate and lock, lever lock, manual gear operator
- Lead-free
- Not recommended for steam service
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
- US coast guard category A
- California health and safety code section 116875
- Vermont act 193
