1/2 FILTER REGULATOR 5 MICRON ELEMENT

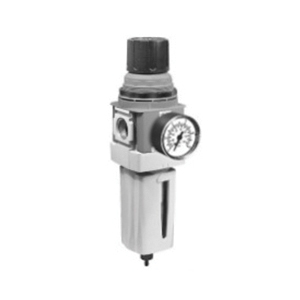

Parker P33E Aluminum Manual Drain 5 MICRON Element Global Modular Standard Filter/Regulator With 125 PSI Gauge, 1/2 IN, NPT, 191 SCFM
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 050P33EA94EGMBNGP
- MPN: P33EA94EGMBNGP
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Manual Drain Global Modular Standard Filter/Regulator With 125 PSI Gauge, Series/Model: Series P33E, Nominal Size: 1/2 IN, Pressure Rating: 150 PSI, Connection: NPT, Flow Rate: 191 SCFM, 5 MICRON Element, Bowl Type: Poly Bowl With Bowl Guard, Mounting: Plastic Panel, Temperature Rating: -13 To 125 DEG F, Length: 2.9 IN, 2.9 IN Width, 11.44 IN Height, Material: Aluminum Body, ABS Body Cap, Industry Standards: OSHA Compliant, CE Certified, RoHS Compliant, Ex ATEX
| Item Name | : | Global Modular Standard Filter/Regulator With 125 PSI Gauge |
| Type | : | Manual Drain |
| Series/Model | : | Series P33E |
| Nominal Size | : | 1/2 IN |
| Pressure Rating | : | 150 PSI |
| Connection | : | NPT |
| Flow Rate | : | 191 SCFM |
| Element | : | 5 MICRON |
| Bowl Type | : | Poly Bowl With Bowl Guard |
| Mounting | : | Plastic Panel |
| Temperature Rating | : | -13 To 125 DEG F |
| Length | : | 2.9 IN |
| Width | : | 2.9 IN |
| Height | : | 11.44 IN |
| Material | : | Aluminum Body, ABS Body Cap |
| Industry Standards | : | OSHA Compliant, CE Certified, RoHS Compliant, Ex ATEX |
- Integral 1/2 IN or 3/4 IN ports (NPT, BSPP and BSPT)
- High efficiency 5 MICRO-M element as standard
- Excellent water removal efficiency
- Robust but lightweight aluminum construction
- Positive bayonet latch to ensure correct and safe fitting
- Secondary pressure ranges 0 - 2 BAR (0 - 30 PSIG), 0 - 4 BAR (0 - 60 PSIG), 0 - 8 BAR (0 - 125 PSIG), 0 - 17 BAR (0 - 250 PSIG)
- Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation
