3/4 SOLENOID VALVE 120 VAC

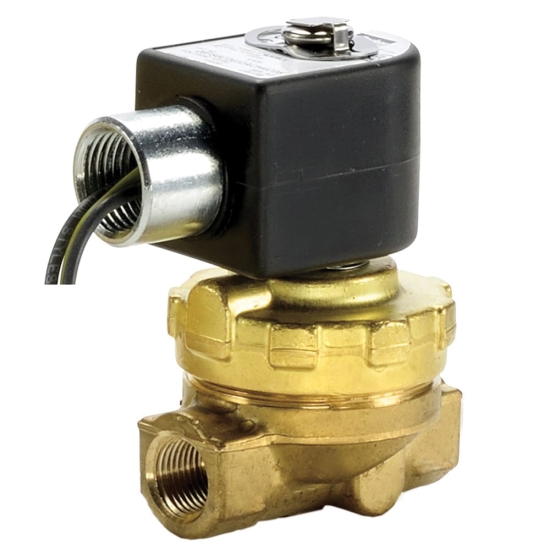

Parker Skinner™ 12FS5C2448ACH4C05 Forged Brass 2-Way Normally Closed Solenoid Valve, 3/4 IN, FNPT, 110 - 120 VAC
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 12FS5C2448ACH4C05
- MPN: 12FS5C2448ACH4C05
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Parker 2-way normally closed, 3/4 IN NPT steam valves provide operating pressures up to 125 PSI and flow factors up to 7.4 CV's. They have a brass body, offer multiple coil options and are made for high temperature water and steam applications.
| Sub Brand | : | Skinner™ |
| Item Name | : | Solenoid Valve |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | FNPT |
| Number Of Ports/Ways | : | 2-Way |
| Configuration | : | Normally Closed |
| Media | : | Hot Water And Steam |
| Pressure Rating | : | 1 PSI Minimum, 125 PSI Steam |
| Temperature Rating | : | 353 DEG F |
| Orifice | : | 3/4 IN |
| Body Material | : | Forged Brass |
| Trim Material | : | PTFE |
| Coil Insulation Class | : | Class 180 High Temperature |
| Power Rating | : | 11 W |
| Voltage Rating | : | 110 - 120 VAC At 50/60 HZ |
| Enclosure | : | NEMA 4, 4X |
| Electrical Connection | : | 18 IN Leads |
| Industry Standards | : | UL Listed And CSA Certified |
| Width | : | 3-5/8 IN |
| Other Physical Dimension | : | 2-29/32 IN Depth, 3-21/32 IN Inlet Center To Top Of Valve |
| Brand | : | Parker |
| Anti-Water Hammer | : | No |
- High quality standards of Skinner® and Gold Ring™ brand
- Modular design
- Long life
- Tight shut-off
Brochure/Catalog
