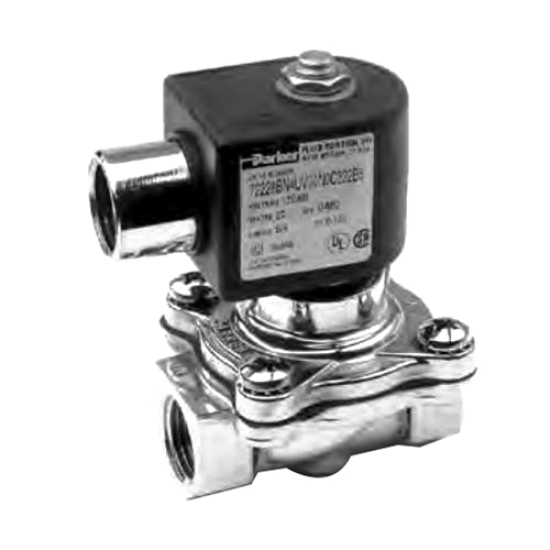

1-1/2 SKINNER SOLENOID VALVE 2-WAY N/C ANTI-WATER HAMMER

2-way anti-water hammer and slow closing valves are designed for liquid applications where the installation is susceptible to shock waves caused by the abrupt closing of the valves. Anti-water hammer valves have integral speed control so that the valve closes in a more controlled and slower manner, thus eliminating the shock to the system piping. Pilot operated valves require the minimum pressure differential specified for proper valve operation.

Skinner™ Anti-Water Hammer Solenoid Valve, Nominal Size: 1-1/2 IN, Connection Type: FNPT, Ports/Ways: 2-Way, Actuation: Internal Pilot Operated, Configuration: Normally Closed, Media: Water And Other Non-Compressible Media, Pressure Rating: 5 - 230 PSI, Temperature Rating: 185 DEG F, 1-9/16 IN Orifice, Brass Body Material, Seal Material: NBR, Coil Insulation Class: Class F, Power Rating: 10 W, Voltage Rating: 110 - 120 VAC At 50/60 HZ, Enclosure: NEMA 4X, Nut And Washer, Electrical Connection: 1/2 IN NPT Conduit, 18 IN Leads, Industry Standards: UL Listed And CSA Certified, 5.66 IN Width, 5.51 IN Height, Additional Specifications: Flow Co-Efficient (Cv): 29

• Valves should be mounted with solenoid coil vertical and upright
• Water, hydraulic fluids and other non-compressible media compatible fluids
