1-1/4 SKINNER N/O SOLENOID VALVE BODY

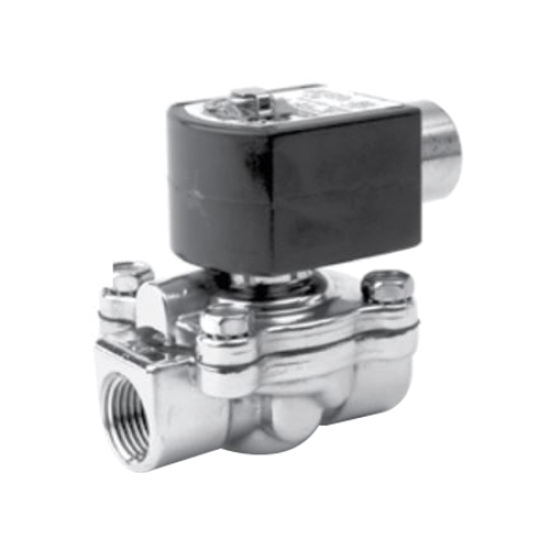

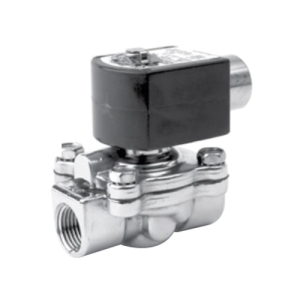

Parker Skinner™ 7322GBN76N00 Brass 2-Way Normally Open Pressure In/Out Solenoid Valve Body, 1-1/4 IN, FNPT
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 7322GBN76N00
- MPN: 7322GBN76N00
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-way direct lift, pilot and remote operated valves are designed for higher flow and medium to high pressure applications. Pilot operated valves require the minimum pressure differential specified for proper valve operation.
| Sub Brand | : | Skinner™ |
| Item Name | : | Solenoid Valve Body |
| Nominal Size | : | 1-1/4 IN |
| Connection Type | : | FNPT |
| Number Of Ports/Ways | : | 2-Way |
| Actuation | : | Internal Pilot Operated |
| Configuration | : | Normally Open Pressure In/Out |
| Media | : | Air, Water, Light Oil And Inert Gas |
| Pressure Rating | : | 5 PSI Minimum, 230 PSI Air/Inert Gas, 230 PSI Water, 230 PSI Light Oil |
| Temperature Rating | : | 185 DEG F |
| Orifice | : | 1-1/8 IN |
| Body Material | : | Brass |
| Seal Material | : | NBR |
| Power Rating | : | 10 W |
| Industry Standards | : | UL Listed And CSA Certified |
| Width | : | 4.33 IN |
| Height | : | 5.41 IN |
| Additional Specifications | : | Flow Co-Efficient (Cv): 19.3 |
| Brand | : | Parker |
| Anti-Water Hammer | : | No |
- Valves should be mounted with solenoid coil vertical and upright
- Lubricated air, inert gases, water and light oil (300 SSU), additional fluids compatible with alternate materials of construction
- Use of non-lubricated gaseous media can affect valve life
