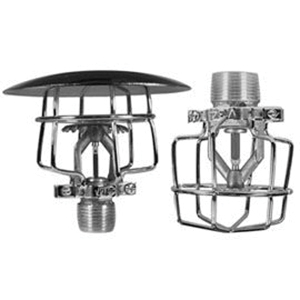

HEAD GUARD FOR V27 UPR AND PENDENT HEADS

FireLock Sprinkler Guard, Material: 13 GA Steel Wire, Finish/Color: Chrome Plated, 2.56 IN Height, 2-3/4 IN Diameter, Industry Standards: CUL And UL Listed, FM Approved

• Sprinkler guards are designed to protect the sprinkler from mechanical damage
• Each guard is constructed from chrome plated steel wire welded to steel plates
• The retaining screws are applied from one side of the part and are equipped with retainers to prevent loss of loose screws during installation
• (2) 8-32 X 1/2 IN, steel, type 1A combination drive screws
• For use with V27 series pendent and upright sprinklers in standard and quick response

Application: For use with V2701, V2702, V2703, V2704, V2705, V2706, V2707, V2708, V2723, V2724 sprinklers

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A31HAQBBA1_Brochure.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_S342GCS620_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_SA51000020_Specification_Sheet.pdf
