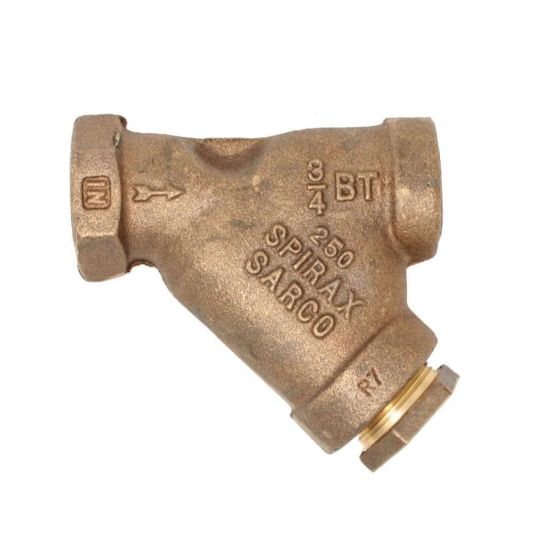

3/4 NPT SARCO BT BRZ Y-STRAINER WITH 60 - 100 MESH SCREEN
Spirax Sarco BT Bronze 60 - 100 Mesh Y-Strainer, 3/4 IN, NPT
- Manufacturer: Spirax Sarco Inc
- Brand: Spirax Sarco
- MGPN: S59515
- MPN: 59515
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Y-Strainer |
| Series/Model | : | Series BT |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | NPT |
| Screen Size | : | 60 - 100 Mesh |
| Blow-Off Port Size | : | 1/2 IN |
| Pressure Class | : | Class 125 |
| Pressure Rating | : | 250 PSIG |
| Body Material | : | Bronze |
| Screen Material | : | 304 Stainless Steel |
| Material Standard | : | ASTM B62 |
| Temperature Rating | : | 406 DEG C Maximum Allowable |
| Width | : | 4.6 IN |
| Other Physical Dimension | : | 3.4 IN Inlet To Outlet |
| Additional Specifications | : | Flow Co-Efficient (Cv): 11.5, Area: 4 Sq-IN |
- High efficiency steam strainers & filters for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
