The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.

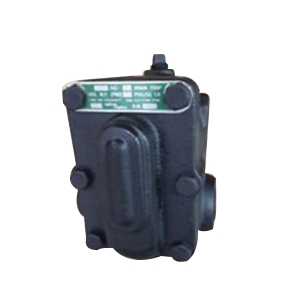

In-Line Flow Pattern Liquid Drain Trap, Series/Model: Model FAI-30, Nominal Size: 3/4 IN, Connection Type: NPT, Pressure Rating: 30 PSI, 0.218 IN Orifice, Cast Iron Body Material, Material Standard: ASTM A126 Grade B, Temperature Rating: 232 DEG C, Length: 4.8 IN, Other Physical Dimension: 6.2 IN Width, 5-3/4 IN, Additional Specifications: Capacity: 3100 LB/HR
| Item Name | : | In-Line Flow Pattern Liquid Drain Trap |
| Series/Model | : | Model FAI-30 |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 30 PSI |
| Orifice | : | 0.218 IN |
| Body Material | : | Cast Iron |
| Material Standard | : | ASTM A126 Grade B |
| Temperature Rating | : | 232 DEG C |
| Length | : | 4.8 IN |
| Other Physical Dimension | : | 6.2 IN Width, 5-3/4 IN |
| Additional Specifications | : | Capacity: 3100 LB/HR |
| Weight | : | 9.000 LB |
- The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system
- ASTM A449 carbon steel cover screws
- Graphite cover gasket
- ASTM A126 CL grade B cast iron cover
- AISI 420F Stainless steel valve seat
- ASTM A193 grade B7 alloy steel cover bolts
- ASTM A194-2H 7/16-14 UNC-2A 3/4 IN and 1 IN cover nuts
- AISI 304 Stainless steel ball float
- AISI 301/302/304 Stainless steel float arm
- AISI 301/302/304 Stainless steel seat bracket
- Type 302/303 stainless steel pivot pin
- Type 440 grade C stainless steel valve head
- ASTM B16 brass plug
- ASTM A167 stainless steel plug gasket
Application: Used in receiver and air line drainage, draining liquid from its vapor phase
