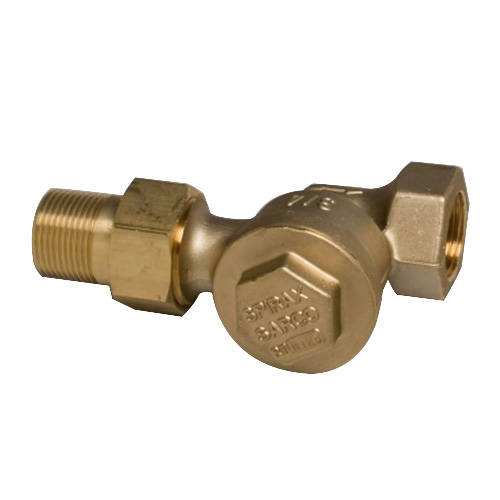

1/2 NPT RTH-125 THERMOSTATIC TRAP

The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 23 DEG F below saturated steam temperature.

Balanced Pressure Straightway Flow Pattern Thermostatic Steam Trap, Series/Model: Model RTH-125, Nominal Size: 1/2 IN, Connection Type: MNPT X FNPT, Pressure Rating: 125 PSI, 0.196 IN Orifice, Forged Brass Body Material, Material Standard: ASTM B124, ASTM B62 Grade TV-125, Finish/Color: Red, Temperature Rating: 179 DEG C, Other Physical Dimension: 3.2 IN Center To End

• The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 13 DEG C below saturated steam temperature
• ASTM B124 Alloy C3770 forged red brass cap
• Stainless steel seat and spring
• Stainless steel BP99 thermostat
• Brass seat gasket
• EPDM o-ring
• ASTM B16 brass union nipple and union nut

Application: Used in vapor or vacuum two-pipe heating systems, radiators, convectors, fintube, hospital blanket warmers, sterilizers and stills, laundry and kitchen equipment and small process equipment

• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/SpiraxSarco_70565_Specification_Sheet.pdf
