SUMNER A502 STAKFIX PIPE SUPPORT

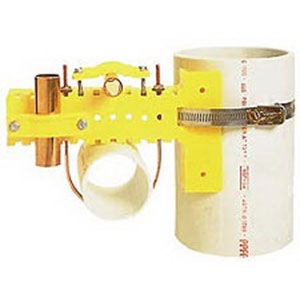

Sumner STAKFIX® 782007 Yellow Polystyrene Pipe Support, 6 IN L
- Manufacturer: Sumner Manufacturing Company Inc
- Brand: Sumner
- MGPN: A502
- MPN: 782007
- UPC: 739236323460
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Stakfix® Pipe Support, Length: 6 IN, Material: Polystyrene, Load Capacity: Outer End Point: 125 LB, Center Point: 202 LB, Innermost Point: 357 LB, Finish/Color: Yellow, Other Physical Dimension: 4-1/8 IN Height X 1-1/4 IN Width
| Sub Brand | : | Stakfix® |
| Item Name | : | Pipe Support |
| Length | : | 6 IN |
| Material | : | Polystyrene |
| Load Capacity | : | Outer End Point: 125 LB, Center Point: 202 LB, Innermost Point: 357 LB |
| Finish/Color | : | Yellow |
| Other Physical Dimension | : | 4-1/8 IN Height X 1-1/4 IN Width |
| Weight | : | 22.000 LB |
- Includes one 7 IN quick-lok stainless steel band, three 1 - 1-1/2 IN clamps, attaching screws and P-556 clips
- Used strictly inside of the chase and attaches to 1-3/8 - 6-5/8 IN OD pipe vents or stacks by means of a stainless steel band similar to the Pipefix
- It has three mounting surfaces for supporting for supporting a combination of piping up to 1-1/2 IN, running vertically and/or horizontally
- It can be strapped onto metal struts or nailed to wood
- 2 - 3 IN pipe can be supported using the U-bolts the P-551 U-bolt is copper plated to prevent electrolysis
- Smaller pipe can be mounted as well as using both styles of clamps
