5 VIC 177 PAINTED COUPLING W/ EHP GASKET

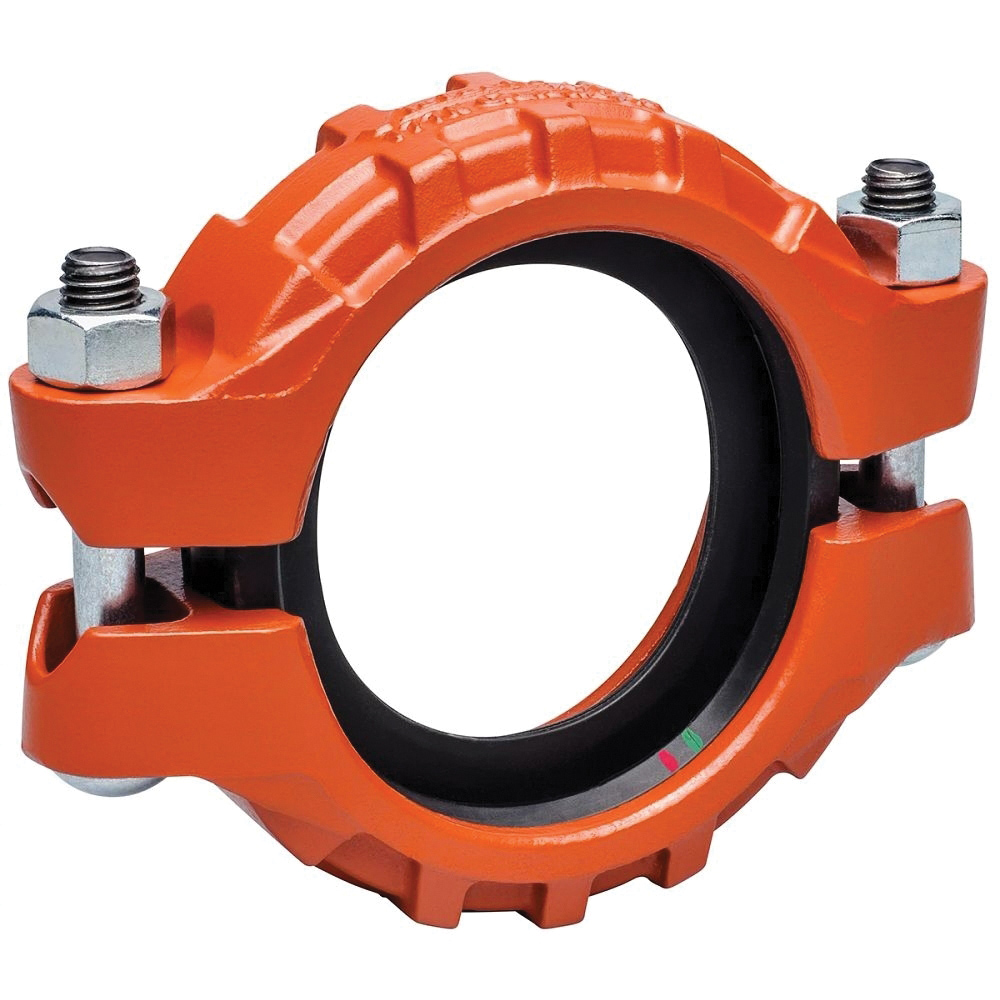

Victaulic QuickVic™ Model 177N L050177PEN Flexible Coupling, 5 IN, Grooved, Ductile Iron, Orange Enamel Painted
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 500P177CE
- MPN: L050177PEN
- UPC: 883481612715
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Flexible Coupling, Sub Brand: QuickVic™, Item Name: Flexible Coupling, Series/Model: Model 177N, 5 IN Nominal, Grooved Connection, 2.245 IN Wall Thickness, Ductile Iron, Material Standard: ASTM A536, Finish/Color: Orange Enamel Painted, 5.5625 IN Outside Diameter, 11.03 IN Length, 1000 PSI Maximum Pressure, -30 - 250 DEG F, Industry Standards: cULus Listed, FM Approved, CE, Additional Specifications: With EHP Gasket
| Sub Brand | : | QuickVic™ |
| Item Name | : | Flexible Coupling |
| Series/Model | : | Model 177N |
| Nominal Size | : | 5 IN |
| Connection Type | : | Grooved |
| Wall Thickness | : | 2.245 IN |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 |
| Finish / Color | : | Orange Enamel Painted |
| Outside Diameter | : | 5.5625 IN |
| Length | : | 11.03 IN |
| Maximum Pressure | : | 1000 PSI |
| Temperature Rating | : | -30 - 250 DEG F |
| Industry Standards | : | cULus Listed, FM Approved, CE |
| Additional Specifications | : | With EHP Gasket |
