4 316 SS PROPRESS XL ADAPTER FLG

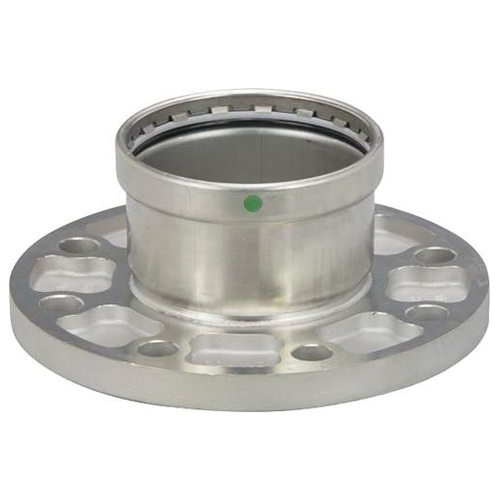

Viega ProPress® 4059XL316 Stainless Steel Flange Adapter, 4 IN, 9.06 IN OD Flange, Press X Flanged
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: 4006SPPAF
- MPN: 81075
- UPC: 691514810751
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Sub Brand | : | ProPress® |
| Item Name | : | Flange Adapter |
| Series/Model | : | Model 4059XL |
| Nominal Size | : | 4 IN |
| Flange Outside Diameter | : | 9.06 IN |
| Connection Type | : | Press X Flanged |
| Flange Thickness | : | 0.96 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 3/4 IN |
| Length | : | 3.77 IN |
| Material | : | 316 Stainless Steel |
| Maximum Pressure | : | 200 PSI |
| Temperature Rating | : | 0 - 250 DEG F |
| Industry Standards | : | NSF International, CSA Certified, UPC Approved, ANSI Certified, IAPMO Certified |
Viega ProPress is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress offers more features and benefits than any other imitation press system.
- Smart Connect® feature
- Fast and easy use
- Flameless
- Permanent connection
- Consistent professional appearance
- Less equipment required
- Environmentally friendly connection system
- EPDM sealing element
- Must be installed with Viega ProPress XL-C rings and V2 actuator
Applications: For use with Viega Propress stainless pipe
