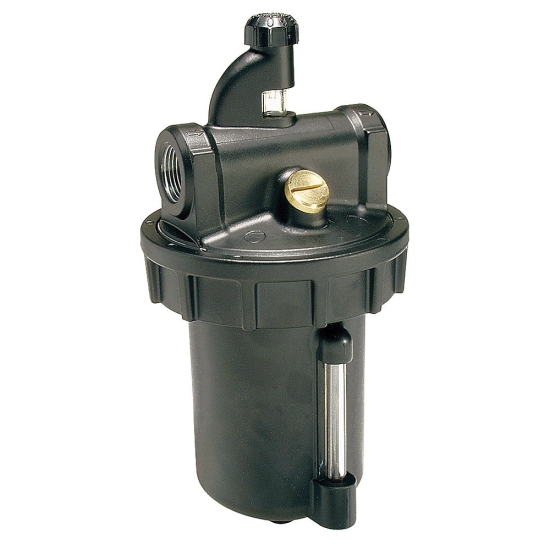

The L606 is an industrial mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate. This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the L606 is easily configurable to your application.
General Industrial Mist Lubricator, Series/Model: Series L606, Nominal Size: 1 IN, Pressure Rating: 0 - 250 PSI, Connection: NPT, Flow Rate: 350 SCFM, Bowl Type: 16 OZ Sight Gauge, Temperature Rating: 40 - 150 DEG F, 4.97 IN Width, 9.88 IN Height, Material: Zinc Body, Zinc With Nylon Bowl
| Item Name | : | Mist Lubricator |
| Type | : | General Industrial |
| Series/Model | : | Series L606 |
| Nominal Size | : | 1 IN |
| Pressure Rating | : | 0 - 250 PSI |
| Connection | : | NPT |
| Flow Rate | : | 350 SCFM |
| Bowl Type | : | 16 OZ Sight Gauge |
| Temperature Rating | : | 40 - 150 DEG F |
| Width | : | 4.97 IN |
| Height | : | 9.88 IN |
| Material | : | Zinc Body, Zinc With Nylon Bowl |
- Integral 1/2 IN or 3/4 IN ports (NPT, BSPP and BSPT)
- Robust but lightweight aluminum construction
- Proportional oil delivery over a wide range of air flows
- Finger tip ratchet control for precise oil drip rate adjustment
- Fill from top under system pressure
