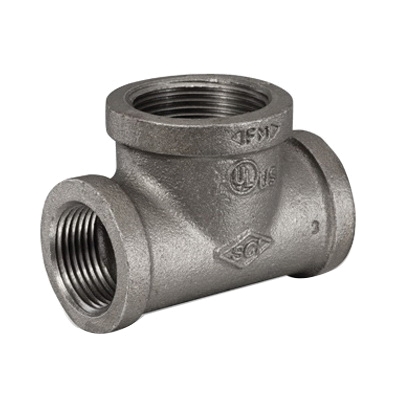

1 X 1 X 1-1/4 STD BLK RED TEE

Class 150 Standard Black Malleable Iron Reducing Bull Head Tee, 1 X 1 X 1-1/4 IN, FNPT, Import

Manufacturer: Macomb Group Approved
Brand: Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
MGPN: 10010012515BLTRTI
MPN: 33BT1010012C
CPN:

Pressure Class
- Class 150
  Pressure Class
Nominal Size
- 1 X 1 X 1-1/4 IN
  Nominal Size
- 2-1/2 X 2-1/2 X 3 IN
  Nominal Size

Item Name	:	Reducing Bull Head Tee
Series/Model	:	Series 33BT1
Pressure Class	:	Class 150
Nominal Size	:	1 X 1 X 1-1/4 IN
Connection Type	:	FNPT
Schedule	:	STD
Material	:	Malleable Iron
Material Standard	:	ASTM A197
Finish / Color	:	Black
Length	:	3.34 IN
Maximum Pressure	:	300 PSI
Industry Standards	:	C/US UL Listed, FM Approved, ASME B16.3, ASME B1.20.1, ISO 9001:2008 and ISO 14001 Certified
Domestic/Import	:	Import

Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/03703701215BLTRTI_Broc.pdf
Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/10010012515BLTRTI_Spec.pdf
Technical Drawing Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/10010012515BLTRTI_Tech.pdf
