1-1/2X1/2 GMI 300 RED

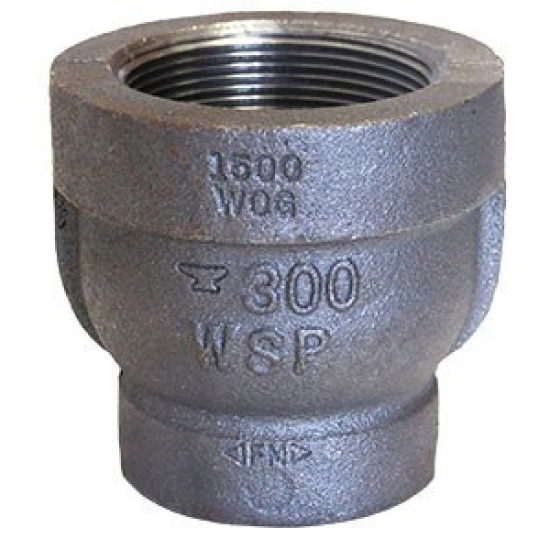

Anvil FIG 1167 0311544407 Reducer, 1-1/2 X 1/2 IN, FNPT, Class 300, XS/SCH 80, XH/SCH 80, Galvanized
- Manufacturer: Anvil
- Brand: Anvil
- MGPN: RED GM 300 1-1/2X1/2
- MPN: 0311544407
- UPC: 690291032790
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil class 300 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 IN (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 BAR).
Anvil Reducer, Reducer, Series/Model: FIG 1167, Pressure Class: Class 300, 1-1/2 X 1/2 IN Nominal, Connection Type: FNPT, XS/SCH 80, XH/SCH 80, Malleable Iron, Material Standard: ASTM A153, Finish/Color: Galvanized, 2-11/16 IN Length, 600 PSI Maximum Pressure, -20 To 550 DEG F, Industry Standards: ASME B16.3, cULus Listed, FM Approved, 1.510 LB Weight
| Item Name | : | Reducer |
| Series/Model | : | FIG 1167 |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 1-1/2 X 1/2 IN |
| Connection Type | : | FNPT |
| Schedule | : | XS/SCH 80, XH/SCH 80 |
| Material | : | Malleable Iron |
| Material Standard | : | ASTM A153 |
| Finish/Color | : | Galvanized |
| Length | : | 2-11/16 IN |
| Maximum Pressure | : | 600 PSI |
| Temperature Rating | : | -20 To 550 DEG F |
| Industry Standards | : | ASME B16.3, cULus Listed, FM Approved |
| Weight | : | 1.510 LB |
