5/16 BI-LOK SS BULKHEAD

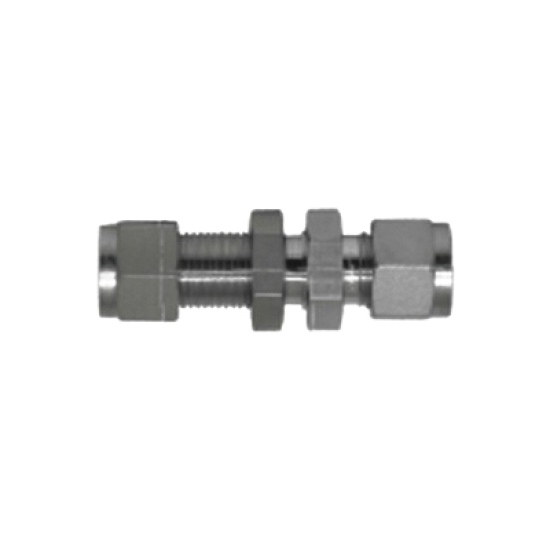

IHARA SCIENCE CORPORATION BI-Lok® DSU DSU-5-SS Bulkhead Union, 5/16 IN, Tube OD, 316 Stainless Steel
- Manufacturer: IHARA SCIENCE CORPORATION
- Brand: IHARA SCIENCE CORPORATION
- MGPN: BILOK UNION SDSU 5
- MPN: DSU-5-SS
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
BI-Lok® double ferrule tube fittings provide leak-free seals in process, power, and instrumentation applications and are fully heat-code traceable, self-aligning, easy-to-install and individually packaged in sealed protection pouches. Including superior corrosion and vibration-resistant designs, from cryogenic to steam, vacuum to tubing yield pressures, BI-Lok® fittings offer multiple leak-free remakes in a wide range of varying pressure and temperature operating environments.
IHARA SCIENCE CORPORATION BI-Lok® Bulkhead Union, BI-Lok®, Bulkhead Union, Series/Model: DSU, 5/16 IN Nominal, Connection Type: Tube OD, 316 Stainless Steel, Material Standard: ASTM A182, 2.39 IN Length, Industry Standards: ISO Certified, RoHS Compliant, Other Physical Dimension: 5/8 IN Nut Hex, 11/16 IN Body Hex, 1/4 IN Orifice, 33/64 IN Panel Hole Drill Size, 0.43 IN Max Panel Thickness
| Sub Brand | : | BI-Lok® |
| Item Name | : | Bulkhead Union |
| Series/Model | : | DSU |
| Nominal Size | : | 5/16 IN |
| Connection Type | : | Tube OD |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A182 |
| Length | : | 2.39 IN |
| Industry Standards | : | ISO Certified, RoHS Compliant |
| Other Physical Dimension | : | 5/8 IN Nut Hex, 11/16 IN Body Hex, 1/4 IN Orifice, 33/64 IN Panel Hole Drill Size, 0.43 IN Max Panel Thickness |
