3 F619 125 NRS FLGD GATE VALVE

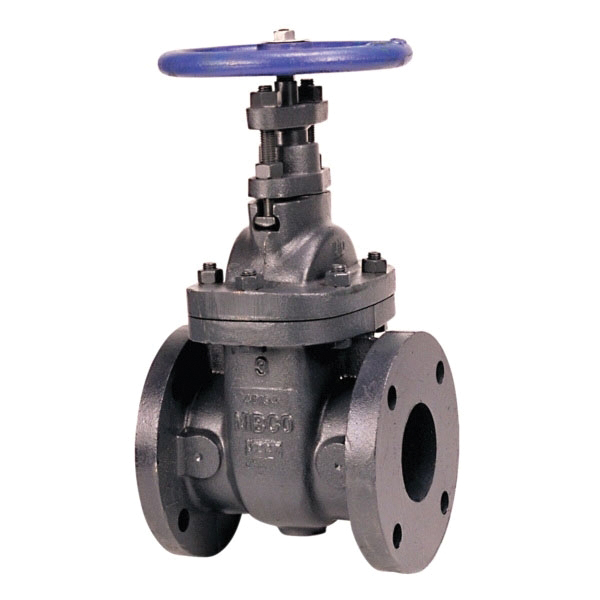

Nibco F-619 Class 125 Cast Iron Handwheel Non-Rising Stem Gate Valve, 3 IN, Flanged
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: 300F619GV
- MPN: NHAC00F
- UPC: 039923697639
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Nibco® cast iron gate valve provides full flow with minimal pressure drop. The cast iron gate valve features a class 125 flanged, flat face end connection for easy installation and accessibility. The iron body bronze mounted (IBBM) valve has a bolted bonnet and non-rising stem. Non-rising stem gate valves are recommended when positive shut-off is required and where space is a premium.
Non-Rising Stem Gate Valve, Series/Model: Model F-619, Nominal Size: 3 IN, Connection Type: Flanged, Pressure Rating: 200 PSI (CWP) Non-Shock At -20 To 150 DEG F, 125 PSI (SWP) At 353 DEG F, Class 125 Pressure Class, Cast Iron Body Material, Handwheel Operator Type, Handle Material: Cast Iron, Stem Material: Brass, Packing Material: Synthetic Fibers With Graphite, Iron Or Brass Packing Gland, Seat Material: Cast Bronze Ring, Material Standard: Body And Handle: ASTM A126 Class B, Stem: ASTM B16, Gland: ASTM B783/B16, Material Specification: Stem: UNS C36000, Finish/Color: Powdered Zinc Plated Packing Gland, Industry Standards: MSS-SP-70 Compliant, 8 IN Width, Lead Free: No, Other Physical Dimension: 7-1/2 IN Flange Diameter, 3/4 IN Flange Thickness
| Item Name | : | Gate Valve |
| Type | : | Non-Rising Stem |
| Series/Model | : | Model F-619 |
| Nominal Size | : | 3 IN |
| Connection Type | : | Flanged |
| Pressure Rating | : | 200 PSI (CWP) Non-Shock At -20 To 150 DEG F, 125 PSI (SWP) At 353 DEG F |
| Pressure Class | : | Class 125 |
| Body Material | : | Cast Iron |
| Operator Type | : | Handwheel |
| Handle Material | : | Cast Iron |
| Stem Material | : | Brass |
| Packing Material | : | Synthetic Fibers With Graphite |
| Gland Material | : | Iron Or Brass Packing |
| Seat Material | : | Cast Bronze Ring |
| Material Standard | : | Body And Handle: ASTM A126 Class B, Stem: ASTM B16, Gland: ASTM B783/B16 |
| Material Specification | : | Stem: UNS C36000 |
| Finish/Color | : | Powdered Zinc Plated Packing Gland |
| Industry Standards | : | MSS-SP-70 Compliant |
| Width | : | 8 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 7-1/2 IN Flange Diameter, 3/4 IN Flange Thickness |
| Weight | : | 60.000 LB |
- 125 PSI/8.6 BAR saturated steam to 353 DEG F/178 DEG C
- 200 PSI/13.8 BAR non-shock cold working pressure
- Bolted bonnet
- Non-rising stem
- Solid wedge
- Class 125 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
