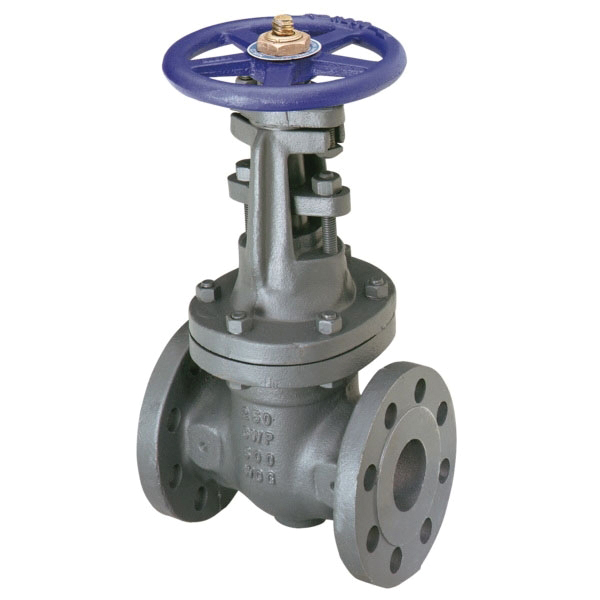

2 F667-O 250 FLGD GATE VALVE

The Nibco® cast iron gate valve provides full flow with minimal pressure drop. The gate valve features a class 250 flanged, raised face end connection for easy installation and accessibility. Outside screw and yoke (OS and Y) gate valves are recommended when positive shut-off is required and a quick visual indicator of open/closed position is needed. The OS and Y configuration protects the stem threads from contact with the media.

Outside Screw And Yoke Gate Valve, Series/Model: Model F-667-O, Nominal Size: 2 IN, Connection Type: Flanged, Pressure Rating: 500 PSI (CWP) Non-Shock At -20 To 150 DEG F, 250 PSI (SWP) At 406 DEG F, Class 250 Pressure Class, Cast Iron Body Material, Handwheel Operator Type, Handle Material: Cast Iron, Stem Material: Brass, Packing Material: PTFE Braided, Iron Or Brass Packing Gland, Material Standard: Body And Handle: ASTM A126 Class B, Stem: ASTM B16, Gland: ASTM B783/B16, Material Specification: Stem: UNS C36000, Finish/Color: Powdered Zinc Plated Packing Gland, Industry Standards: MSS-SP-70 Compliant, New York City BSA 143-69-SA Approved, 8-1/2 IN Width, Lead Free: No, Other Physical Dimension: 6-1/2 IN Flange Diameter, 16 IN Inlet Center To Top Of Handle, 8 IN Handwheel Diameter

• 250 PSI/17.2 BAR saturated steam to 406 DEG F/207 DEG C
• 500 PSI/34.5 BAR non-shock cold working pressure
• Outside screw and yoke
• Bolted bonnet
• Solid wedge
• Iron body bronze mounted (IBBM)
• Class 250 flanged end connections
