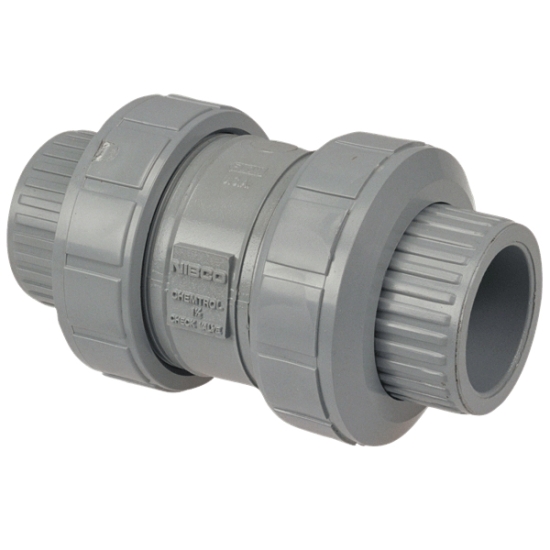

1/2 CPVC TRU UNION CHECK

The Chemtrol® true union ball check valve stops the flow of media in one direction while allowing flow in the opposite direction, with minimum turbulence and chatter while maintaining pump prime. The valve's injection molded CPVC construction with FKM O-ring is ideal for use in systems for hot corrosive liquids, hot and cold water distribution, chemical processing, industrial plating, deionized water lines, chemical drainage, waste water treatment systems, and similar applications above the temperature range of PVC.

NIBCO Chemtrol® Ball Check Valve, Type: True Union, Chemtrol®, Ball Check Valve, Series/Model: U51BC-V, 1/2 IN Nominal, Connection Type: Universal (S And F), 150 PSI (CWP) At 100 DEG F, 210 DEG F Maximum Service, Corzan® CPVC Body, FKM Trim, FKM Seat, FKM Seal, Material Standard: Body: ASTM F1970, Finish/Color: Light Gray, Industry Standards: NSF/ANSI/CAN-61, NSF/ANSI 14, Additional Specifications: Schedule: SCH 80, 0.445 LB Weight

• Valve pressure rating 150 PSI at 73 DEG F water non-shock
• Maximum service temperature 210 DEG F
• True union design
• FKM O-ring
• Includes both socket and female NPT thread end connections
• Do not use or test with compressed air or other gases
• ASTM F1970
• NSF/ANSI standard 14
• NSF/ANSI/CAN-61

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/REDPVCTHDS80114X1_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVCKCPVCTU12_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVCKCPVCTU12_Spec.pdf
