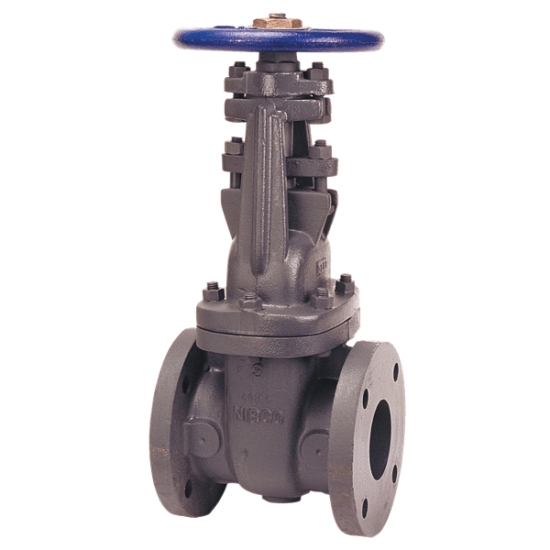

2-1/2 NIBCO 125 F617-ON IBBM GATE VALVE

The NIBCO® cast iron gate valve with all iron trim provides full flow with minimal pressure drop. The cast iron gate valve features a class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shut-off and a quick visual indicator of open/closed position is required. The OS&Y configuration protects the stem threads from contact with the media.

NIBCO Gate Valve, Type: Bolted Bonnet, Multi-Turn, Gate Valve, Series/Model: F-617-ON, 2-1/2 IN Nominal, Connection Type: Flanged, 200 PSI (CWP) Non-Shock At -20 To 150 DEG F, 125 PSI (SWP) At 353 DEG F, Pressure Class: Class 125, Cast Iron Body, Standard Handwheel Operator, Cast Iron Handle, Steel Stem, Iron Trim, Aramid Fibers With Graphite Packing, Metal Gland, Cast Iron Seat, Material Standard: Body: ASTM A126 Class B, Bolts: ASTM A307/SAE J429, Bonnet: ASTM A126 Class B, Bushing: ASTM A536, Yoke: ASTM A536, Cap: ASTM A536, Bonnet: ASTM A536, Collar: ASTM A108, Stem: ASTM A108, Gland Follower: ASTM A536, Handwheel: ASTM A126 Class B, Handwheel Or Handwheel Nut: ASTM A536, Nut: ASTM A563, Nut: ASTM A563, Body: ASTM A563, Nut: ASTM A563, Bonnet Cap: ASTM A563, Packing Gland: ASTM B783, Pin: ASTM A108, Wedge: ASTM A108, Body: ASTM A126 Class B, Ring: ASTM A126 Class B, Seat: ASTM A126 Class B, Screw: ASTM A307/SAE J429, Body: ASTM A307/SAE J429, Screw: ASTM A307/SAE J429, Bonnet Cap: ASTM A307/SAE J429, Stem: ASTM A108, Wedge: ASTM A126 Class B, Industry Standards: MSS SP-70 Compliant, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 7-1/2 IN Width, Lead Free: No, Other Physical Dimension: 17.26 IN Center To Top Of Handle, 8 IN Wheel Diameter, Additional Specifications: Special Features: Outside Screw And Yoke, 54.770 LB Weight

• 125 PSI/8.6 BAR saturated steam to 353 DEG F/178 DEG C
• 200 PSI/13.8 BAR non-shock cold working pressure
• Bolted bonnet
• Solid wedge
• Outside screw and yoke
• Iron body, all iron trim
• Class 125 flanged flat face end connections
• Use in US drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-70

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/012T211BGLV_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGTIBF617ON212_Inst.pdf
• MSDS Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGTIBF617ON212_MSDS.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGTIBF617ON212_Spec.pdf
