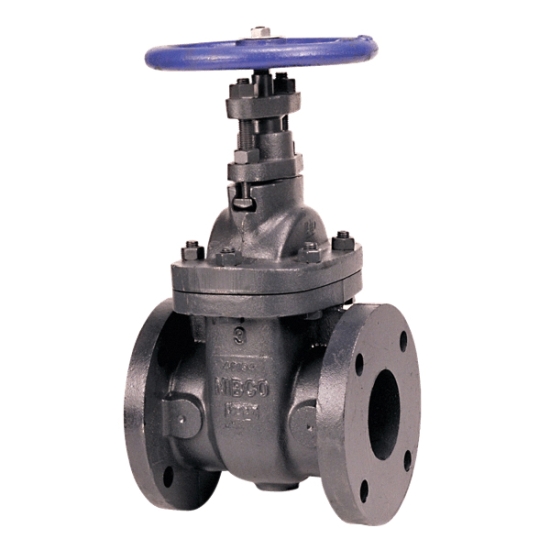

2 NIBCO 125 F-619 IBBM GATE VALVE

The NIBCO® cast iron gate valve provides full flow with minimal pressure drop. The cast iron gate valve features a class 125 flanged, flat face end connection for easy installation and accessibility. The iron body bronze mounted (IBBM) valve has a bolted bonnet and non-rising stem. Non-rising stem gate valves are recommended when positive shut-off is required and where space is a premium.

NIBCO Gate Valve, Type: Bolted Bonnet, Multi-Turn, Non-Rising Stem, Gate Valve, Series/Model: F-619, 2 IN Nominal, Connection Type: Flanged, 200 PSI (CWP) Non-Shock At -20 To 150 DEG F, 125 PSI (SWP) At 353 DEG F, Pressure Class: Class 125, Cast Iron Body, Standard Handwheel Operator, Cast Iron Handle, Brass Stem, Aramid Fibers With Graphite Packing, Iron Gland, Material Standard: Wedge: ASTM A126 Class B, Body: ASTM A126 Class B, Body Bolts: ASTM A307/SAE J429, Body Nut: ASTM A307/SAE J429, Bonnet: ASTM A126 Class B, Gland Follower: ASTM A126 Class B/ASTM A536, Gland Follower Bolts: ASTM A307/SAE J429, Gland Follower Nut: ASTM F467, Handwheel Nut: ASTM A307, Handwheel Or Handwheel Nut: ASTM A126 Class B, Packing Gland: ASTM B16/ASTM B783, Seat Ring: ASTM B584, Stem: ASTM B16, Stuffing Box: ASTM A126 Class B, Stuffing Box Nut: ASTM A307/SAE J429, Wedge Face Ring: ASTM B584, Material Specification: Gland Follower Nut: UNS C27000, Seat Ring: UNS C84400, Stem: UNS C36000, Wedge Face Ring: UNS C84400, Industry Standards: MSS SP-70 Compliant, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 7 IN Width, Lead Free: No, Other Physical Dimension: 11 IN Inlet Center To Top Of Handle, 7 IN Wheel Diameter, 35.135 LB Weight

• 125 PSI/8.6 BAR saturated steam to 353 DEG F/178 DEG C
• 200 PSI/13.8 BAR non-shock cold working pressure
• Bolted bonnet
• Non-rising stem
• Solid wedge
• Class 125 flanged end connections
• Use in US drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-70
• 14 - 16 IN maximum 100 PSI steam, 150 PSI cold working pressure

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/012T211BGLV_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGTIBF617ON212_Inst.pdf
• MSDS Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGTIBF617ON212_MSDS.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVGTIBF61910_Spec.pdf
