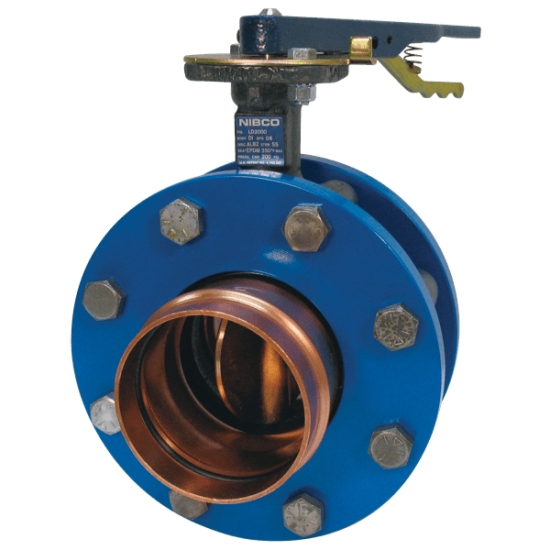

2-1/2 NIBCO PFD2000-3 DI BUTTERFLY VALVE

The NIBCO® Press System® lug style butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shut-off at 200 PSI. The valve features press-to-connect end connections with an inboard bead and EPDM O-rings for quick and easy joinery to the piping system. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.

NIBCO Press System® Butterfly Valve, Type: Lug Style, Quarter-Turn, Press System®, Butterfly Valve, Series/Model: PFD-2000-3, 2-1/2 IN Nominal, Connection Type: Female Press, 200 PSI (CWP) Non-Shock, 150 PSI (SWP) At 250 DEG F, 250 DEG F Maximum Service, Ductile Iron Body, Locking Lever Handle Operator, Stainless Steel Stem, Material Standard: Body Lug: ASTM A536, Collar Bushing: ASTM B124, Disc: ASTM B148, Flange Press End: ASTM B75, Lower Bushing: ASTM B75, Stem: ASTM A582 Type 416, Upper Bushing: ASTM B75, Material Specification: Disc: UNS Alloy 954/955, Flange Press End: UNS C12200, Lower Bushing: UNS C12200, Upper Bushing: UNS C12200, Industry Standards: MSS SP-67, MSS SP-25, API 609, NSF/ANSI-8 And NSF/ANSI-37, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Lead Free: No, Other Physical Dimension: 5.88 IN Center To Top, 3.27 IN Center To Bottom, 23.550 LB Weight

• Valve pressure rating 200 PSI/13.8 BAR non-shock cold working pressure
• Maximum service temperature 250 DEG F
• Ductile iron body
• Extended neck
• Geometric drive
• Molded-in seat liner
• Press x press female end connections
• MSS SP-67
• MSS SP-25
• API standard 609

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCOPRESSVLVBFDIPXPPFD20003212_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCOPRESSVLVBFDIPXPPFD20003212_Spec.pdf
