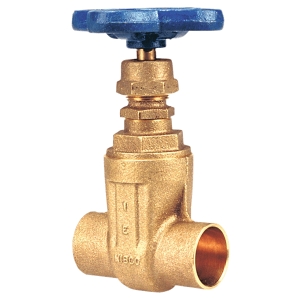

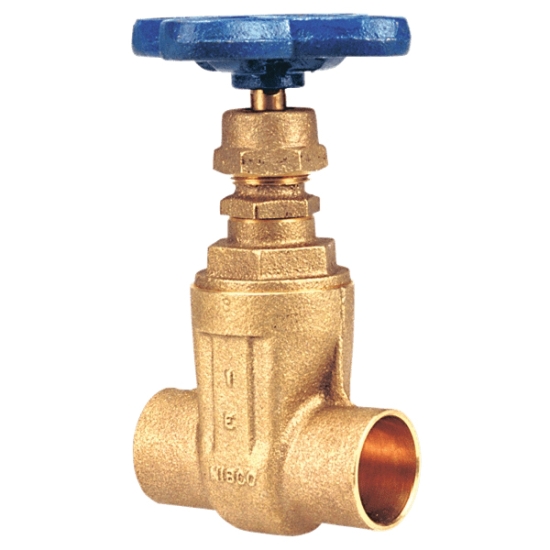

3/8 NIBCO 125 S113 CXC GATE VALVE

The NIBCO® bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. The solder ends allow for ease of installation. Non-rising stem gate valves are used when shut-off is required and a space saving is necessary. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services.

NIBCO Gate Valve, Type: Multi-Turn, Non-Rising Stem, Screw-In Bonnet, Gate Valve, Series/Model: S-113, 3/8 IN Nominal, Connection Type: Female Solder Cup, 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F, Pressure Class: Class 125, Bronze Body, Standard Handwheel Operator, Malleable Iron Handle, Silicon Bronze Stem, Aramid Fibers With Graphite Packing, Bronze Gland, Bronze Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Handwheel: ASTM A47, Packing Gland: ASTM B62/ASTM B584/ASTM B16, Packing Nut: ASTM B62/ASTM B584/ASTM B16, Stem: ASTM B371/ASTM B99, Stuffing Box: ASTM B62, Wedge: ASTM B62, Material Specification: Packing Gland: UNS C84400, Packing Nut: UNS C84400, Stem: UNS C69430/C69400/C65100, Industry Standards: ANSI B16.22, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 1.69 IN Width, Lead Free: No, Other Physical Dimension: 3.38 IN Center To Top Of Handle, 0.650 LB Weight

• 125 PSI/8.6 BAR saturated steam to 353 DEG F/178 DEG C
• 200 PSI/13.8 BAR non-shock cold working pressure
• Non-rising stem
• Solid wedge
• Screw-in bonnet
• Class 125 solder end connections
• Use in US drinking water applications is prohibited after January 3, 2014
• Dezincification-resistant
• Conforms to MSS SP-80
