3/8 NIBCO 125 T311Y THD

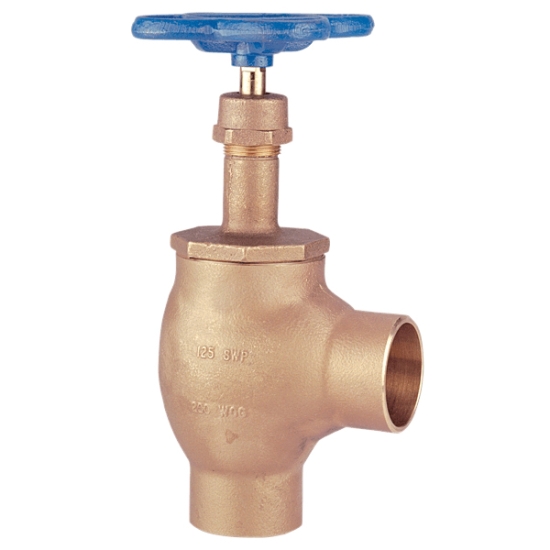

NIBCO S-311-Y NJ4K005 Angle Valve, 3/8 IN, Female Solder Cup, Class 125, Bronze Body
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV GL BR T311Y 3/8
- MPN: NJ4K005
- UPC: 039923631039
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® bronze angle valve features a screw-in bonnet with integral seat and renewable seat disc. The seat disc is available in PTFE. The angle valve is used for throttling or regulating flow and the design eliminates a low area in the system where particles can settle and corrode or solidify. The valve is equipped with solder ends for ease of installation.
NIBCO Angle Valve, Type: Multi-Turn, Screw-In Bonnet, Angle Valve, Series/Model: S-311-Y, 3/8 IN Nominal, Connection Type: Female Solder Cup, 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F, Pressure Class: Class 125, Bronze Body, Standard Handwheel Operator, Malleable Iron Handle, Silicon Bronze Stem, Aramid Fibers With Graphite Packing, Bronze Gland, PTFE Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Holder Nut: ASTM B62/B140, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B124/ASTM B62, Packing Nut: ASTM B62/ASTM B584, Seat Disc Nut: ASTM B62, Stem: ASTM B371, Material Specification: Disc Holder Nut: UNS C31400, Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400, Industry Standards: ASME B16.22, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Lead Free: No, Other Physical Dimension: 3-1/2 IN Center To Top Of Handle, 1.19 IN Center To End, Additional Specifications: Flow Co-Efficient (Cv): 2.75, 0.815 LB Weight
| Item Name | : | Angle Valve |
| Type | : | Multi-Turn, Screw-In Bonnet |
| Series/Model | : | S-311-Y |
| Nominal Size | : | 3/8 IN |
| Connection Type | : | Female Solder Cup |
| Pressure Rating | : | 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F |
| Pressure Class | : | Class 125 |
| Body Material | : | Bronze |
| Operator Type | : | Standard Handwheel |
| Handle Material | : | Malleable Iron |
| Stem Material | : | Silicon Bronze |
| Packing Material | : | Aramid Fibers With Graphite |
| Gland Material | : | Bronze |
| Seat Material | : | PTFE |
| Material Standard | : | Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Holder Nut: ASTM B62/B140, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B124/ASTM B62, Packing Nut: ASTM B62/ASTM B584, Seat Disc Nut: ASTM B62, Stem: ASTM B371 |
| Material Specification | : | Disc Holder Nut: UNS C31400, Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400 |
| Industry Standards | : | ASME B16.22, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Lead Free | : | No |
| Other Physical Dimension | : | 3-1/2 IN Center To Top Of Handle, 1.19 IN Center To End |
| Additional Specifications | : | Flow Co-Efficient (Cv): 2.75 |
| Weight | : | 0.815 LB |
- 125 PSI/8.6 BAR saturated steam to 353 DEG F/178 DEG C
- 200 PSI/13.8 BAR non-shock cold working pressure
- Integral seat
- Screw-in bonnet
- Renewable PTFE seat disc
- Class 125 solder end connections
- Use in US drinking water applications is prohibited after January 3, 2014
- Dezincification-resistant
- Conforms to MSS SP-80
