3/8 NIBCO 125 CXC CHECK

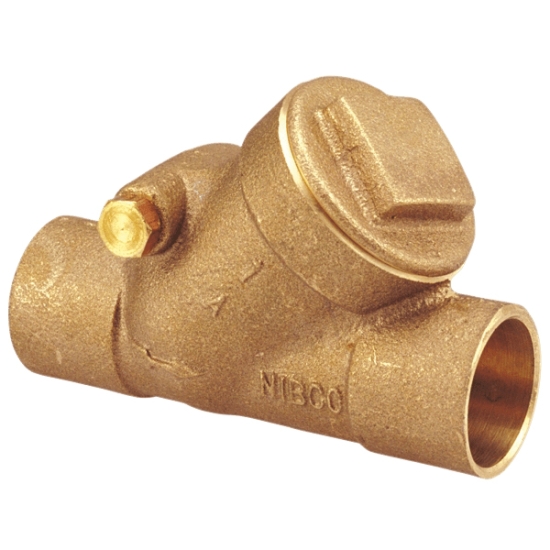

NIBCO S-413-Y NJ74005 Check Valve, 3/8 IN, Female Solder Cup, Class 125, Bronze Body
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV CK BR S413Y 3/8
- MPN: NJ74005
- UPC: 039923634634
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features solder end connections for ease of installation. The check valve is recommended for commercial and industrial steam, water, oil and gas services.
NIBCO Check Valve, Type: Horizontal Swing, Regrinding, Y-Pattern, Check Valve, Series/Model: S-413-Y, 3/8 IN Nominal, Connection Type: Female Solder Cup, 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F, Pressure Class: Class 125, Bronze Body, PTFE Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Disc Hanger: ASTM B62/MPIF SS-316NI-25, Disc Holder: ASTM B62, Hanger Nut: ASTM B16, Hinge Pin: ASTM A276, Hinge Pin Plug: ASTM B140/ASTM B16, Seat Disc Nut: ASTM B16/ASTM B96, Seat Disc Washer: ASTM F594, Material Specification: Body: UNS C83600, Bonnet: UNS C83600, Disc Hanger: UNS C83600, Disc Holder: UNS C83600, Hanger Nut: UNS C36000, Hinge Pin: UNS S31600/S30400, Hinge Pin Plug: UNS C31400/C36000, Seat Disc: UNS C83600, Seat Disc Nut: UNS C36000/C65100, Seat Disc Washer: UNS S30400/S31600, Industry Standards: ASME B16.22, MSS SP-139, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 2.13 IN Width, Lead Free: No, Other Physical Dimension: 1.63 IN Center To Top, Additional Specifications: Flow Co-Efficient (Cv): 2.5, 0.411 LB Weight
| Item Name | : | Check Valve |
| Type | : | Horizontal Swing, Regrinding, Y-Pattern |
| Series/Model | : | S-413-Y |
| Nominal Size | : | 3/8 IN |
| Connection Type | : | Female Solder Cup |
| Pressure Rating | : | 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F |
| Pressure Class | : | Class 125 |
| Body Material | : | Bronze |
| Seat Material | : | PTFE |
| Material Standard | : | Body: ASTM B62, Bonnet: ASTM B62, Disc Hanger: ASTM B62/MPIF SS-316NI-25, Disc Holder: ASTM B62, Hanger Nut: ASTM B16, Hinge Pin: ASTM A276, Hinge Pin Plug: ASTM B140/ASTM B16, Seat Disc Nut: ASTM B16/ASTM B96, Seat Disc Washer: ASTM F594 |
| Material Specification | : | Body: UNS C83600, Bonnet: UNS C83600, Disc Hanger: UNS C83600, Disc Holder: UNS C83600, Hanger Nut: UNS C36000, Hinge Pin: UNS S31600/S30400, Hinge Pin Plug: UNS C31400/C36000, Seat Disc: UNS C83600, Seat Disc Nut: UNS C36000/C65100, Seat Disc Washer: UNS S30400/S31600 |
| Industry Standards | : | ASME B16.22, MSS SP-139, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Width | : | 2.13 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 1.63 IN Center To Top |
| Additional Specifications | : | Flow Co-Efficient (Cv): 2.5 |
| Weight | : | 0.411 LB |
- 125 PSI/8.6 BAR saturated steam to 353 DEG F/178 DEG C
- 200 PSI/13.8 BAR non-shock cold working pressure
- Y-pattern
- Renewable PTFE disc
- Regrindable seat
- Class 125 solder end connections
- Use in US drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-139
