1/4 NIBCO 150 T335Y THD

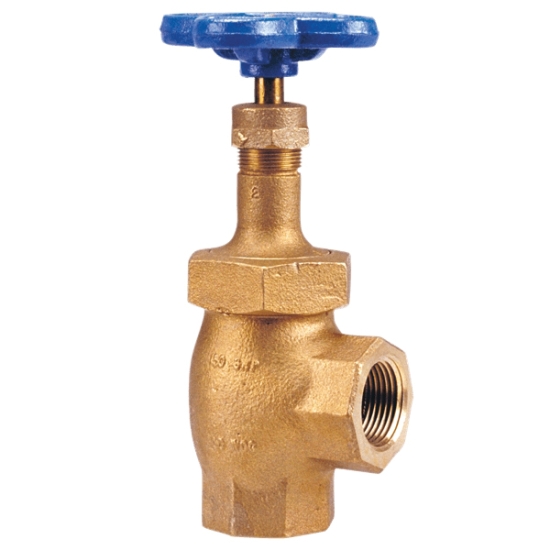

NIBCO T-335-Y NL54004 Angle Valve, 1/4 IN, FIPT, Class 150, Bronze Body
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV GL BR T335Y 1/4
- MPN: NL54004
- UPC: 039923632067
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® bronze angle valve features a union bonnet with integral seat and renewable seat disc. The seat disc is available in PTFE. The angle valve is used for throttling or regulating flow and the design eliminates a low area in the system where particles can settle and corrode or solidify. It is equipped with class 150 female threaded ends for ease of installation.
NIBCO Angle Valve, Type: Multi-Turn, Union Bonnet, Angle Valve, Series/Model: T-335-Y, 1/4 IN Nominal, Connection Type: FIPT, 300 PSI (CWP) Non-Shock, 150 PSI (SWP) At 366 DEG F, Pressure Class: Class 150, Bronze Body, Standard Handwheel Operator, Malleable Iron Handle, Silicon Bronze Stem, Aramid Fibers With Graphite Packing, Bronze Gland, PTFE Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Nut: ASTM B62, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B124/ASTM B62, Packing Nut: ASTM B124/ASTM B62, Stem: ASTM B371, Union Nut: ASTM B62, Material Specification: Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400, Industry Standards: ASME B1.20.1, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Lead Free: No, Other Physical Dimension: 3.88 IN Inlet Center To Top Of Handle, 1.19 IN Center To End, Additional Specifications: Flow Co-Efficient (Cv): 1.45, 1.119 LB Weight
| Item Name | : | Angle Valve |
| Type | : | Multi-Turn, Union Bonnet |
| Series/Model | : | T-335-Y |
| Nominal Size | : | 1/4 IN |
| Connection Type | : | FIPT |
| Pressure Rating | : | 300 PSI (CWP) Non-Shock, 150 PSI (SWP) At 366 DEG F |
| Pressure Class | : | Class 150 |
| Body Material | : | Bronze |
| Operator Type | : | Standard Handwheel |
| Handle Material | : | Malleable Iron |
| Stem Material | : | Silicon Bronze |
| Packing Material | : | Aramid Fibers With Graphite |
| Gland Material | : | Bronze |
| Seat Material | : | PTFE |
| Material Standard | : | Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Nut: ASTM B62, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B124/ASTM B62, Packing Nut: ASTM B124/ASTM B62, Stem: ASTM B371, Union Nut: ASTM B62 |
| Material Specification | : | Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400 |
| Industry Standards | : | ASME B1.20.1, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Lead Free | : | No |
| Other Physical Dimension | : | 3.88 IN Inlet Center To Top Of Handle, 1.19 IN Center To End |
| Additional Specifications | : | Flow Co-Efficient (Cv): 1.45 |
| Weight | : | 1.119 LB |
- 150 PSI/10.3 BAR saturated steam to 366 DEG F/185 DEG C
- 300 PSI/20.7 BAR non-shock cold working pressure
- Integral seat
- Renewable PTFE seat disc
- Class 150 threaded end connections
- Use in US drinking water applications is prohibited after January 3, 2014
- Dezincification-resistant
- Conforms to MSS SP-80
