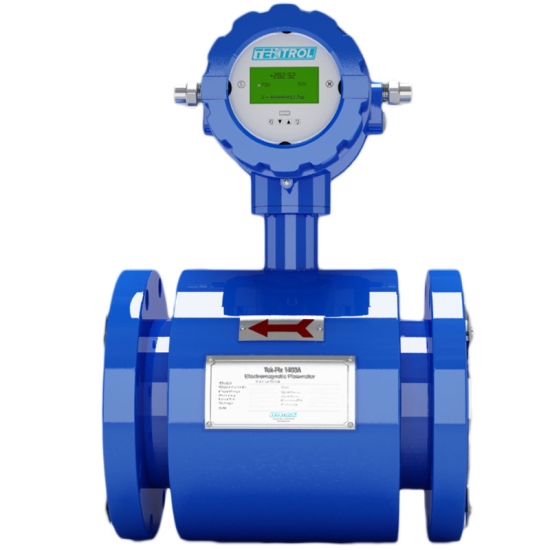

TEK-FLUX 1400A PTFE HASTELLOY C ELECTRODES 150 FLANGE Accuracy: ±0.5%
Repeatability: 0.15%
Ambient Temperature:
Sensor (Remote Type): -4 °F to 158 °F (-20 °C to +70 °C)
Converter: -4 °F to 158 °F (-20 °C to +70 °C)
Integral Type: 14 °F to 122 °F (-10 °C to +50 °C)
Humidity: 5% to 95% RH (no frost)
Vibration Frequency: 55 Hz
Amplitude: 0.55 mm
Ambient Magnetic Field: ≤400 A/m
Fluid Temperature:
Direct Mount: ≤176 °F (80 °C)
PTFE Lining: ≤248 °F (120 °C)
Nominal Pressure: Limited to Flange Rating
Power Supply: 18 to 28 VDC, 85 to 220 VAC
Enclosure: Sensor: IP68, Converter: IP65
Output Signal: Pulse and 4 to 20 mA
Digital Communication: Modbus, RS485 or HART
Electrode Material: Hastelloy C
Lining Material: PTFE
Flange Material: Carbon Steel
Measuring Tube Material: Stainless Steel

- Wide range of nominal diameter Size ½" to 28" (0.04 ft to 2.33 ft) with IP68 protection
- Easy maintenance due to no moving parts
- Uninfluenced by temperature, pressure, viscosity, and density
- Used for wide application, can measure conductive fluid, without reference to fibre, solid,or suspending
material contained in liquid
- High turndown ratio up to 1:100
- It features high intelligence, with back light LCD display, menu setting control, three grades password
protection, two-way measuring, slight signal removal, auto flow compensation, and other function
- Features high intelligence, which ensure empty pipe detection, self-detection, self-diagnostic functions,
and safety alarms for upper and lower limit
- Features SMART excitation, which ensures zero-point stability, high reliability, and low power consumption
- Lining and electrode available in various materials which can measure nearly all conductive fluids
- It has multiple signal output, pulse or Modbus RS485 or HART® or 4 to 20 mA
- The power supply system has good voltage vibration ability
- Meters batching and blending totalization
